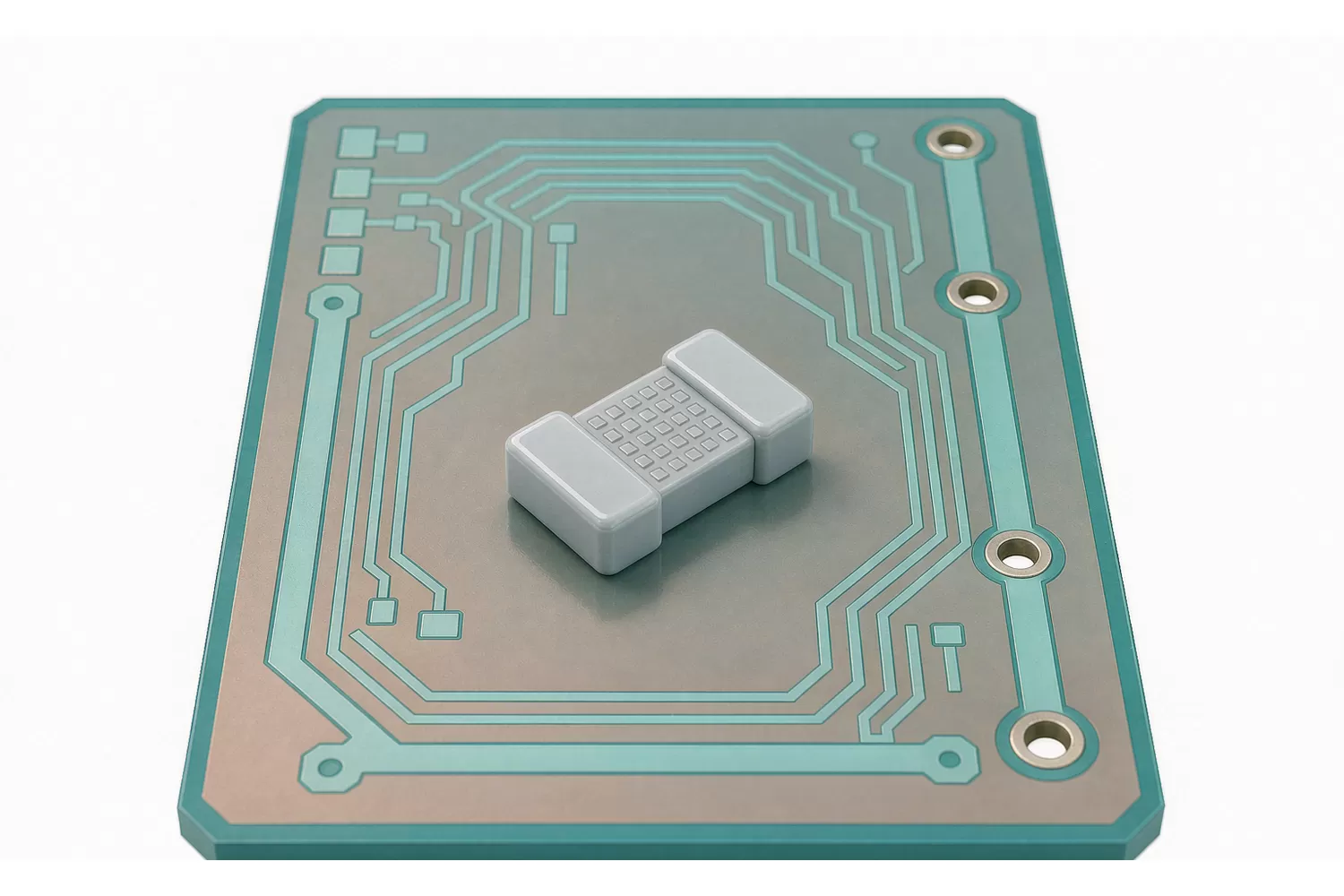

The 100A200JW150XT5 is a porcelain multilayer chip capacitor from ATC. RF capacitors of this type are chosen for stable, low-loss behaviour at frequency: matching networks, coupling and bypass in power amplifier stages, filter structures and antenna paths. They look like ordinary chip capacitors, and they behave very differently.
Why a passive part deserves attention
The failure mode here is quiet. A commodity MLCC substituted into a tuned network may measure fine at DC and still detune the stage at operating frequency, or shift with temperature until the product drifts out of specification in the field. That is why RF passives are specified by part number rather than by "a 20 pF capacitor", and why lot traceability is worth insisting on even for cheap parts.
Checklist for RF passives
- Full part number. Case size, dielectric and tolerance are all encoded in the code; order the exact string.
- Dielectric behaviour. Do not swap porcelain or high-Q dielectrics for commodity parts in a tuned path without re-measuring.
- Lot and date code. Ask for both, and check the shipped lot matches the quoted one.
- Handling and storage. Chip capacitors are fragile mechanically; board flex and poor storage cause cracks that test fine on the bench and fail in the field.
Passive sourcing at a glance
| Use case | Approach | Reference |
|---|---|---|
| Tuned RF path | Exact part number, traceable lot | 100A200JW150XT5 |
| RF power combining / coupling | Related high-voltage RF capacitor series | 600S100JW250XT5 |
| General decoupling | Commodity MLCC is fine | No need for RF-grade parts |
| Broad passive search | Category listing | other component range |
How to buy
Send the full part number and quantity, including any date-code requirement. We quote from actual stock with the lot information we hold, MOQ from a single piece, so qualification quantities and production quantities can be handled the same way.
