The SIT2596S-5.0 from 芯力特 (SIT) is a 3 A step-down (buck) switching voltage regulator that delivers a fixed 5.0 V output. It ships in a TO-263-5 (D2PAK / DD-PAK) surface-mount package and is widely used as a pin-to-pin, function-compatible drop-in for the industry-standard LM2596S-5.0 from Texas Instruments. Jingteng Electronics stocks both the SIT2596S-5.0 and the TI LM2596 family as an independent distributor — we are not an authorized agent of either manufacturer.
What the part is
A 2596-class buck regulator takes a higher DC input and switches it down to a regulated output with high efficiency. For the SIT2596 class the typical specifications are: input voltage around 4.5 V to 40 V, output current up to 3 A, fixed output options of 3.3 V / 5.0 V / 12 V plus an adjustable version, and a switching frequency near 150 kHz. Treat these as class-typical figures and verify the exact numbers on the SIT2596 datasheet for your specific part and temperature grade.
TO-263-5 package, decoded
TO-263-5 is the 5-lead surface-mount version of the D2PAK (also called DD-PAK). The five pins are typically: 1 – Input (VIN), 2 – Output (VOUT / switch node), 3 – Ground (GND), 4 – Feedback (FB, used on the adjustable version), and 5 – ON/OFF (shutdown). The large metal tab is the thermal drain/ground and must be soldered to a generous copper pour on the PCB to move heat away — at 3 A this is not optional. For through-hole boards, the same regulator is offered in TO-220-5.
Pin-to-pin with LM2596S-5.0
Because the SIT2596S-5.0 follows the LM2596 pin map, it drops into existing LM2596S-5.0 layouts. The two parts share the VIN / Output / GND / FB / ON-OFF assignments, so a board designed for TI's LM2596S-5.0 can usually accept the SIT part without re-spinning the footprint. That said, a cross-reference is a compatibility starting point, not a 100% equivalence promise — confirm the pinout, thermal and electrical parameters on both datasheets before committing to production. If you prefer the original TI device, we also carry the TI LM2596S-5.0 and the TI LM2596S-ADJ.
Selection guide: which version do you need?
Fixed 5.0 V vs adjustable: choose the -5.0 when your rail is exactly 5.0 V and you want the simplest BOM (no feedback divider). Choose -ADJ when you need a non-standard voltage or want to trim the output. The SIT2596 family also covers 3.3 V and 12 V fixed outputs for common secondary rails.
Package: TO-263-5 (SMD) for automated assembly and compact boards; TO-220-5 for hand-solderable or heatsink-mounted through-hole designs.
Input / output margin: keep the input comfortably above the output plus the regulator dropout, and size the output capacitor and inductor for your load transient. A 150 kHz switcher is forgiving on inductor size but still needs a correct saturation-current rating.
Thermal and layout notes for 3 A
At 3 A the regulator dissipates real power, especially with a large input-to-output step. Give the TO-263-5 tab a wide, low-impedance copper pour (ideally with thermal vias to an inner ground plane), place the input and output ceramics close to the pins, keep the switch-node loop small, and use a Schottky catch diode rated for the full load current. Skimping on copper is the most common cause of thermal shutdown in 2596-class designs.
Where it fits
SIT2596S-5.0 is a workhorse for 12 V- or 24 V-fed boards that need a clean 5 V rail: industrial controllers, sensor nodes, comms modules, LED drivers and embedded systems. It is a good choice when you want LM2596-class performance with a second-source option.
If you are qualifying a second source or need both the SIT and TI parts side by side, the SIT2596S-5.0 (in stock) we keep in stock is the natural starting point, and we can quote the TI LM2596S-5.0 / LM2596S-ADJ alongside it.
Alternative & Cross-Reference Parts (for reference)
The devices below are commonly used industry parts in the same functional class. They are listed for identification and compatibility-engineering reference only. A cross-reference is not a guarantee of pin-to-pin or 100% functional equivalence — package, pinout, electrical parameters and temperature rating can differ between devices and between manufacturers. Always verify against the original manufacturer's datasheet before substituting any part in a design.
| Manufacturer | Typical part(s) | Class / note |
|---|---|---|
| 芯力特 (SIT) | SIT2596S-5.0 | 3A buck, fixed 5.0 V, TO-263-5 (this part) |
| 芯力特 (SIT) | SIT2596S-3.3 | 3A buck, fixed 3.3 V, TO-263-5 |
| 芯力特 (SIT) | SIT2596S-12 | 3A buck, fixed 12 V, TO-263-5 |
| 芯力特 (SIT) | SIT2596S-ADJ | 3A buck, adjustable output, TO-263-5 |
| Texas Instruments | LM2596S-5.0 | Industry reference, pin-to-pin (TI®) |
| Texas Instruments | LM2596S-3.3 / LM2596S-12 / LM2596S-ADJ | TI® LM2596 family, fixed & adjustable |
SIT (芯力特) is a trademark of its respective owner. Texas Instruments® and LM2596® are trademarks of Texas Instruments Incorporated. Mentioned part numbers are provided for identification and compatibility-engineering purposes only. Jingteng Electronics is an independent distributor and is not affiliated with, authorized by, or an agent of SIT (芯力特) or Texas Instruments.
Related In-Stock Voltage Regulators
| Part number | |
|---|---|
| SIT2596S-5.0 (in stock) | Check stock & quote |
| TI LM2596S-5.0 | Check stock & quote |
| TI LM2596S-ADJ | Check stock & quote |
Frequently Asked Questions
Is SIT2596S-5.0 a drop-in replacement for LM2596S-5.0?
It is designed as a pin-to-pin, function-compatible device in the same TO-263-5 package and is widely used as a drop-in for the LM2596S-5.0 (Texas Instruments). Because cross-references are never a 100% equivalence guarantee, confirm the pinout, electrical parameters and the original SIT2596 and LM2596 datasheets before substituting in a production design.
What does the '-5.0' and 'TO-263-5' mean?

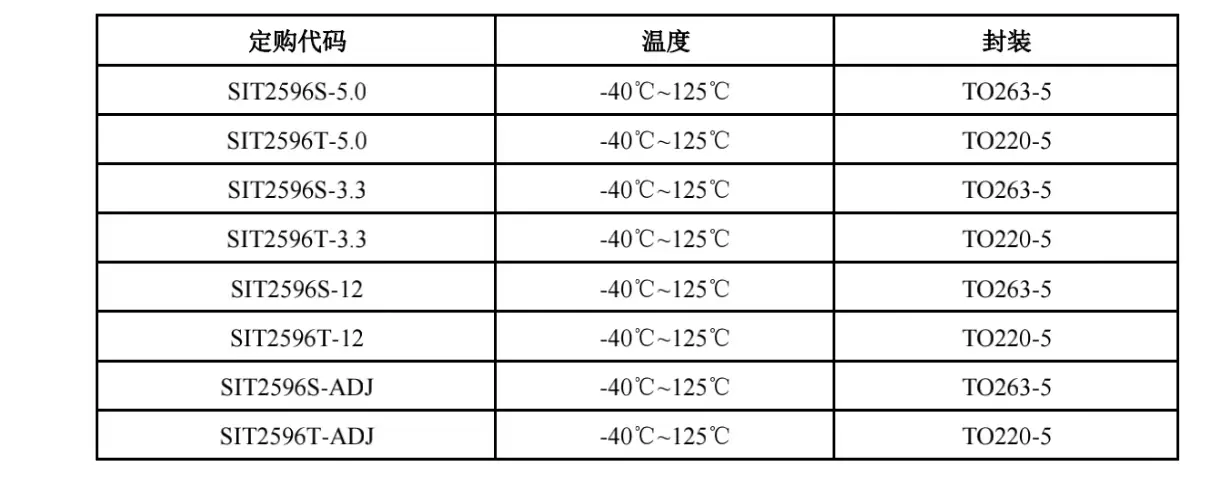

'-5.0' indicates a fixed 5.0 V output; the SIT2596 family also ships as 3.3 V, 12 V and adjustable (-ADJ) versions. 'TO-263-5' is the 5-lead surface-mount D2PAK / DD-PAK package (also called DDPAK); the same die is offered in TO-220-5 for through-hole boards.
How much current can it deliver and what is the input range?
It is a 3 A step-down (buck) switching regulator. For this regulator class the typical input range is about 4.5 V to 40 V and the switching frequency is around 150 kHz, but always verify the exact limits on the SIT2596 datasheet for your part and temperature grade.
What external parts does a SIT2596 design need?
A minimal buck application needs an input capacitor, an output capacitor, a power inductor, a catch (freewheeling) Schottky diode and (for the adjustable version) a two-resistor feedback divider. Fixed-output versions such as the -5.0 do not need the divider but still need the inductor, diode and capacitors.
Can Jingteng supply SIT2596 and the TI LM2596 family?
As an independent distributor we stock the SIT2596S-5.0 as well as the TI LM2596S-5.0 and LM2596S-ADJ. Availability, pricing and date code are confirmed at quotation; for hard-to-find or end-of-life voltages ask early so we can source through verified channels.
