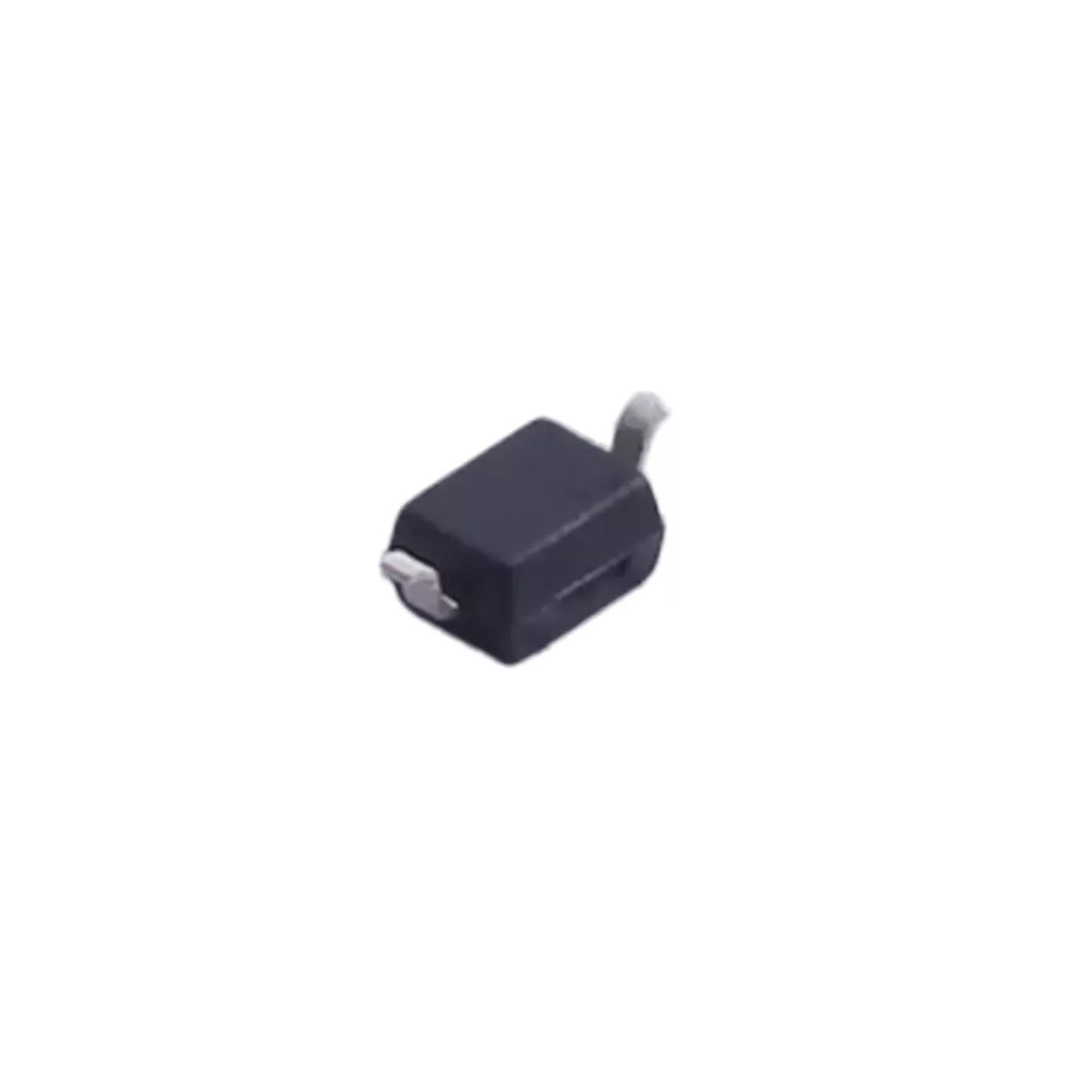

BAP64-03
-
When You'll Get It:Aug 25 - Aug 29
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract. Free shipping on orders over $10,000. For bulk buys, get a personal support rep and quick reimbursement if anything's defective.
**Description**
- Planar PIN diode in a SOD323 very small plastic SMD package
- High voltage, current controlled RF resistor
- For applications up to 3 GHz
- **Product Status:** Last Time Buy (End of Life) — Last Time Buy Date: 2025/12/31
**Features**
- High voltage, current controlled
- RF resistor for RF attenuators and switches
- Low diode capacitance
- Low diode forward resistance
- Low series inductance
- AEC-Q101 qualified
- Marking code: A3 (marking bar indicates cathode)
- Small plastic SMD package: SOD323
- RoHS compliant and Pb-free
- Moisture Sensitivity Level: MSL-1
- Peak Package Body Temperature (Pb-free soldering): 260°C
**Key Specifications** (Tj = 25°C unless otherwise specified)
- Reverse Voltage (VR): 175 V maximum
- Forward Current (IF): 100 mA maximum
- Total Power Dissipation (Ptot @ Tsp = 90°C): 500 mW maximum
- Junction Temperature (Tj): -65°C to +150°C
- Storage Temperature (Tstg): -65°C to +150°C
- Forward Voltage (VF @ IF = 50 mA): 0.95 V typ. / 1.1 V max
- Reverse Current (IR @ VR = 60 V): 10 μA max
- Diode Capacitance (Cd @ VR = 1 V, f = 1 MHz): 0.35 pF typ.
- Diode Capacitance (Cd @ VR = 20 V, f = 1 MHz): 0.23 pF typ. / 0.35 pF max
- Forward Resistance (rD @ IF = 0.5 mA, f = 100 MHz): 20 Ω typ. / 40 Ω max
- Forward Resistance (rD @ IF = 1 mA, f = 100 MHz): 10 Ω typ. / 20 Ω max
- Forward Resistance (rD @ IF = 10 mA, f = 100 MHz): 2.0 Ω typ. / 3.8 Ω max
- Forward Resistance (rD @ IF = 100 mA, f = 100 MHz): 0.7 Ω typ. / 1.35 Ω max
- Charge Carrier Life Time (τL): 1.55 μs typ.
- Series Inductance (LS): 1.68 nH typ.
- Package / Case: SOD323 (SC-76)
- Supplier Device Package: SOD-323
**Applications**
- RF attenuators and switches
- RF communications
- High-frequency signal routing in communication systems (mobile phones, Wi-Fi modules, wireless devices)
- Automotive and industrial applications
---
> **Note:** All parameters are subject to the official NXP BAP64-03 datasheet (Product data sheet Rev. 9 — 11 March 2019). Specifications are typical values and may vary with operating conditions. This product is Last Time Buy — End of Life Date: December 31, 2025.
