CROSS-REFERENCE ALTERNATIVE
COS5532SR is a Chinese-manufactured 36V General-Purpose Op-Amp from COSINE (科山芯创) that cross-references to NE5532AD (TI), and also to SA5532AD.
It is a SOP8 device positioned as a domestic-supply option against the imported: shorter lead times, no allocation risk and a stable price for volume production. Because the parts are not pin-identical in every case, the engineering checklist below lists what to verify before you commit.
Cross-reference · Before you substitute · Related parts · FAQ · Request a quote

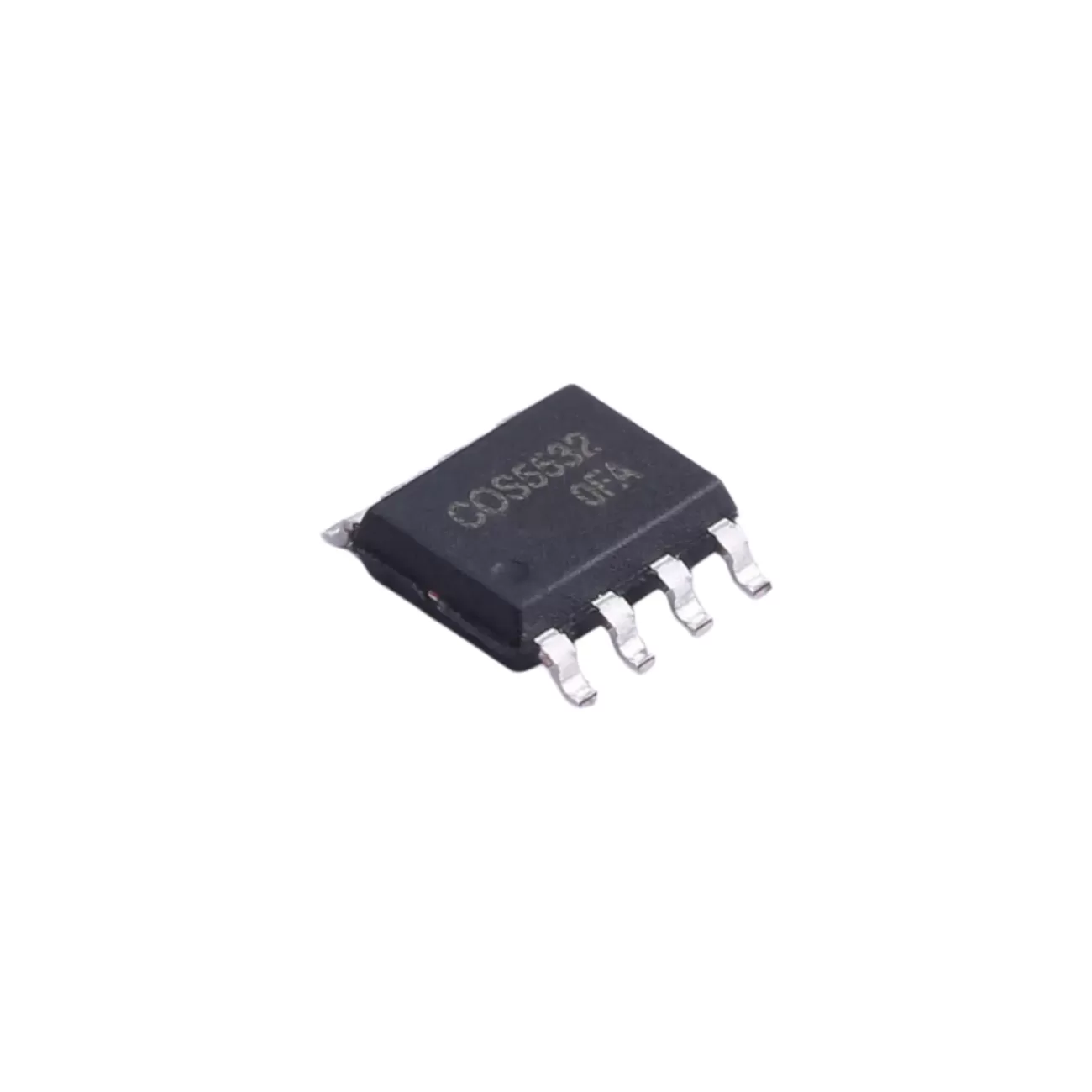

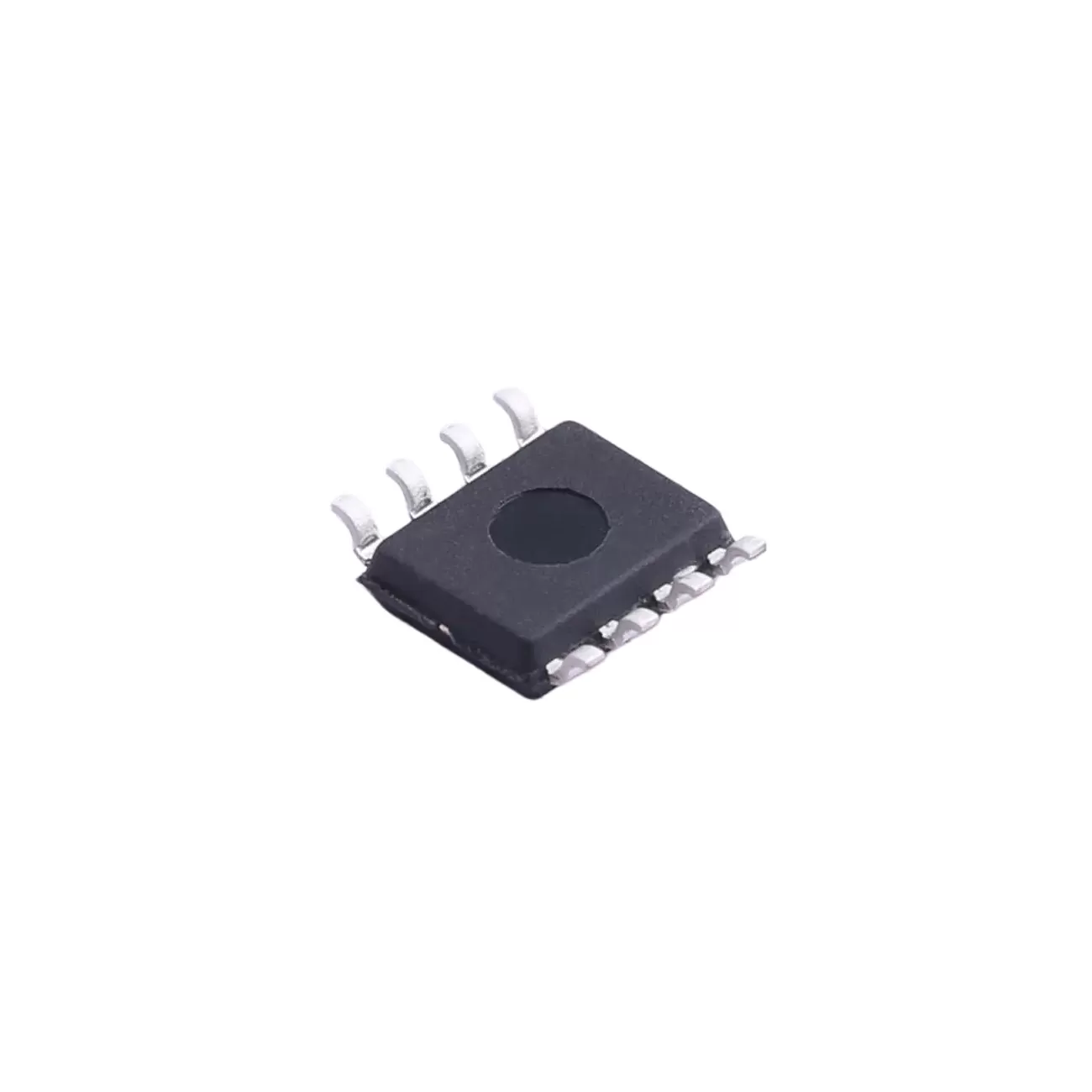

COS5532SR — 36V General-Purpose Op-Amp, alternative to NE5532AD
COS5532SR is supplied by Shenzhen Jingteng Electronics (JTDZ Tech) as a domestically sourced option for NE5532AD (TI), SA5532AD (TI). Imported parts in this class are frequently subject to allocation, long lead times and steep price swings. A Chinese-manufactured equivalent removes that exposure: the parts are production-validated in industrial, consumer and automotive designs and ship from stock on a short lead time.
Cross-reference chart — which imported parts does COS5532SR replace?
Every imported part number that COS5532SR is published as a cross-reference alternative to, per the COSINE (科山芯创) 2025 selection table:
| imported part number | brand | Replaced by (this part) |
|---|---|---|
| NE5532AD | TI | COS5532SR |
| SA5532AD | TI | COS5532SR |
Cross-reference means functional equivalence in the same application role. It is not a blanket claim of pin-for-pin identity — confirm package, pinout and the parameters listed below before you release a design change.
Device information
| Part number | COS5532SR |
| Manufacturer | COSINE (科山芯创) |
| Device class | 36V General-Purpose Op-Amp |
| Package | SOP8 |
| Pin Count | 8 |
| Verified and new, traceable date code | |
| Stock | In stock, ships within 24 hours |
| Description | 36V General-Purpose Op-Amp, SOP8 package. |
What to verify before substituting COS5532SR
These are the parameters that decide whether a cross-reference works in practice. Run through the list against the datasheet before releasing a change:
- Supply voltage range including the full 36 V rating
- Gain-bandwidth product and slew rate for your signal bandwidth
- Input offset voltage and bias current tolerance acceptable for the application
- Output current capability into the real load
- Input common-mode range and output swing
- Package/pinout for single, dual and quad variants
- Quiescent current and thermal behaviour in a multi-channel package
Typical applications
- Industrial process control and 4–20 mA loops
- Precision sensor signal conditioning
- Instrumentation and data-acquisition front ends
- Medical and laboratory equipment
- Test and measurement instruments
- Audio and active-filter stages
Related COSINE parts and alternatives
Other {BRAND} parts in the same device family or the same device class — useful when you are cross-referencing a whole BOM rather than a single line item.
| COSINE part | Package | Cross-references to | Relation |
|---|---|---|---|
| COS5532SRB | SOP8 | NE5532AD, SA5532AD | Same series |
| COS5532MR | MSOP8 | NE5532AD, SA5532AD | Same series |
| COS5532DT | DIP8 | NE5532AD, SA5532AD | Same series |
| LM358SR | SOP8 | LM358 | 36V General-Purpose Op-Amp |
| LM324SR | SOP14 | LM324 | 36V General-Purpose Op-Amp |
Prefer the imported? We also stock NE5532DR — compare price, lead time and availability before you decide.
Frequently asked questions
What does COS5532SR replace?
According to the COSINE (科山芯创) 2025 cross-reference table, COS5532SR is published as an alternative to NE5532AD (TI), SA5532AD (TI).
Is COS5532SR a pin-to-pin drop-in for NE5532AD?
Cross-reference means the part is intended for the same application role; it is not a blanket guarantee of pin-for-pin identity. Check package, pinout and the parameters listed under “What to verify” above, or send us your BOM and we will confirm before you commit.
Can you supply the NE5532AD as well?
Yes. We source both the imported and the Chinese-manufactured alternative, so you can compare price, lead time and availability on the same quote.
What is the MOQ and lead time for COS5532SR?
MOQ 1 pc. COS5532SR is held in stock and ships within 24 hours; quotes are returned within 2 business hours. We ship worldwide including India, Vietnam and the Middle East.
Request a quote for COS5532SR
Send us the part number and target quantity — we reply within 2 business hours with price, stock and a cross-reference confirmation.
Request a quote More Amplifiers / Data Conversion
Genuine original parts guaranteed — traceable lot & date code, X-ray / visual inspection and third-party test supported before shipment.
COS5532SR-NE5532AD-ALTERNATIVE-COSINE-36V-GENERAL-PURPOSE-OP-AMP — COSINE to NE5532AD
The COS5532SR-NE5532AD-ALTERNATIVE-COSINE-36V-GENERAL-PURPOSE-OP-AMP is listed by Jingteng Electronics as a COSINE analog IC in the Power, Amplifiers & Data-Conversion ICs category. We supply it as a genuine, original part sourced through verified channels, suitable for buyers who need reliable, fast-turn component sourcing.
Typical Applications
As an analog IC, this component is commonly designed into equipment that relies on Power, Amplifiers & Data-Conversion ICs. These analog ICs amplify signals and convert between analog and digital domains. They are found in sensor signal chains, audio and instrumentation, data acquisition and precision measurement across industrial, medical and communications products.
Authenticity & Sourcing
Jingteng supplies COSINE COS5532SR-NE5532AD-ALTERNATIVE-COSINE-36V-GENERAL-PURPOSE-OP-AMP as genuine and original stock. COSINE is a third-party trademark referenced here only to identify the component; Jingteng is an independent distributor and does not act as an agent of the component manufacturer.
Request a Quote for COS5532SR-NE5532AD-ALTERNATIVE-COSINE-36V-GENERAL-PURPOSE-OP-AMP
Need pricing or availability for COS5532SR-NE5532AD-ALTERNATIVE-COSINE-36V-GENERAL-PURPOSE-OP-AMP? Send the part number and your target quantity and our team replies within 2 business hours with a quote.
