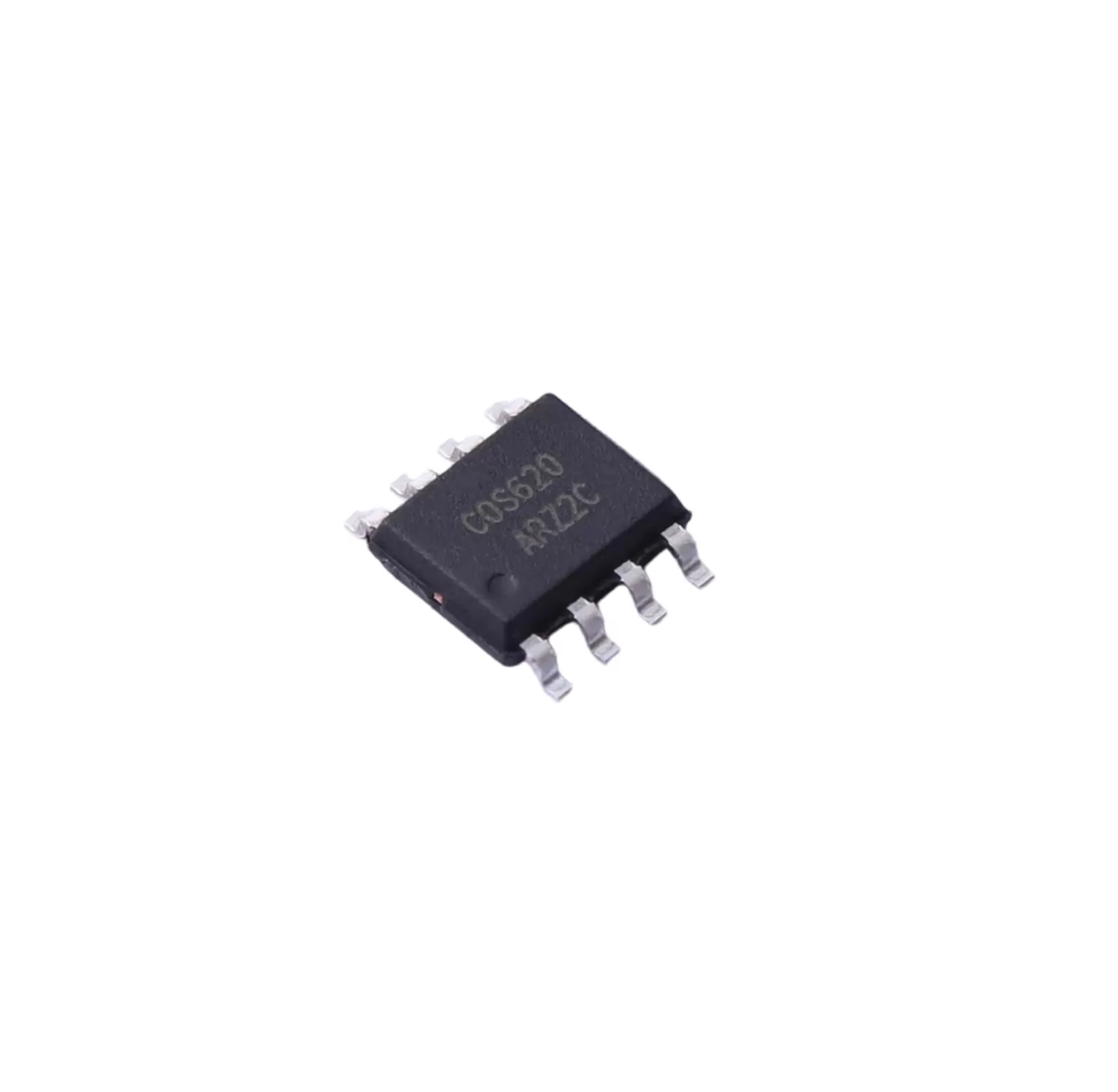

COS620ARZ
-
When You'll Get It:Aug 25 - Aug 29
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract. Free shipping on orders over $10,000. For bulk buys, get a personal support rep and quick reimbursement if anything's defective.
36V精密仪器放大器 替代AD620ARZ
封装：SOT23-5
批号：26+
产地：中国
Description
COS620 is a low-power, general purpose instrumentation amplifiers offering excellent accuracy. The versatile 3-op amp design and small size make these amplifiers ideal for a wide range of applications. A single external resistor sets any gain from 1 to 10,000.
COS620 is laser-trimmed for very low offset voltage(50µV), drift(0.2µV/ºC)and high common mode rejection. It operates with power supplies as low as ±2.25. The quiescent current is only 1.0mA, ideal for battery-operated systems. COS620 is available in 8-pin plastic SOP8, DIP8 and MSOP8 packages, specified for the -40 ºC to +125 ºC temperature range.
Feature
• Low Offset Voltage: 50µV(Max.)
• Low Drift: 0.2µV/ºC
• Low Input Bias Current: 2nA(Max.)
• Gain Bandwidth Product: 1.5MHz
• Slew Rate: 1.0V/µs
• Wide Supply Range：±2.25V ~ ±18V
• Low Quiescent Current: 1.0mA
• Unity Gain Stable
• Input Over-Voltage Protection
• Extended Temperature Ranges From -40°C to +125°C
• Available as SOP8/MSOP8/DIP8
