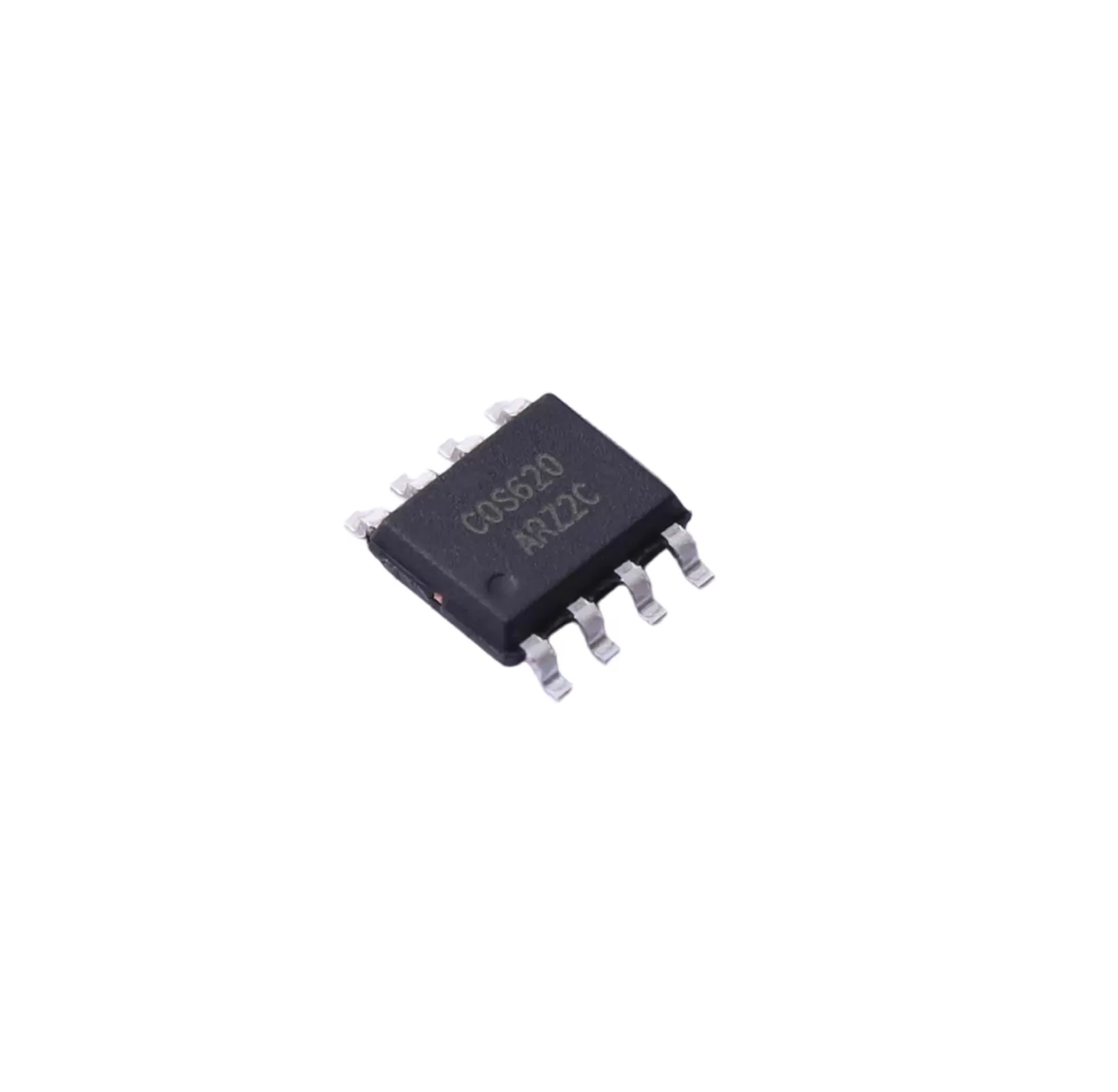

COS620ARZ — Precision Instrumentation Amplifier, alternative to AD620ARZ

COS620ARZ is supplied by Shenzhen Jingteng Electronics (JTDZ Tech) as a domestically sourced option for AD620ARZ (ADI), INA128UA (TI). Imported parts in this class are frequently subject to allocation, long lead times and steep price swings. A Chinese-manufactured equivalent removes that exposure: the parts are production-validated in industrial, consumer and automotive designs and ship from stock on a short lead time.

Cross-reference chart — which imported parts does COS620ARZ replace?

Every imported part number that COS620ARZ is published as a cross-reference alternative to, per the COSINE (科山芯创) 2025 selection table:

Cross-reference means functional equivalence in the same application role. It is not a blanket claim of pin-for-pin identity — confirm package, pinout and the parameters listed below before you release a design change.

Device information

What to verify before substituting COS620ARZ

These are the parameters that decide whether a cross-reference works in practice. Run through the list against the datasheet before releasing a change:

1. Gain equation and the external gain-set resistor value — the transfer function must match exactly
2. Gain error and gain drift, plus the gain-set resistor tolerance the part actually demands
3. Common-mode rejection ratio, especially at the mains frequency and its harmonics
4. Input offset voltage and drift, referred to input at your maximum gain
5. Input bias current and input impedance against the bridge or sensor source impedance
6. Supply range (single- vs dual-supply operation) and output swing to the rails
7. Reference pin behaviour and package/pinout

Typical applications

• Bridge and load-cell signal conditioning
• Thermocouple, RTD and strain-gauge front ends
• Medical instrumentation and ECG/EEG front ends
• Industrial 4–20 mA and PLC analogue inputs
• Data acquisition systems
• Precision current and pressure sensing

Related COSINE parts and alternatives

Other {BRAND} parts in the same device family or the same device class — useful when you are cross-referencing a whole BOM rather than a single line item.

Prefer the imported? We also stock AD620ARZ — compare price, lead time and availability before you decide.

Frequently asked questions

What does COS620ARZ replace?

According to the COSINE (科山芯创) 2025 cross-reference table, COS620ARZ is published as an alternative to AD620ARZ (ADI), INA128UA (TI).

Is COS620ARZ a pin-to-pin drop-in for AD620ARZ?

Cross-reference means the part is intended for the same application role; it is not a blanket guarantee of pin-for-pin identity. Check package, pinout and the parameters listed under “What to verify” above, or send us your BOM and we will confirm before you commit.

Can you supply the AD620ARZ as well?

Yes. We source both the imported and the Chinese-manufactured alternative, so you can compare price, lead time and availability on the same quote.

What is the MOQ and lead time for COS620ARZ?

MOQ 1 pc. COS620ARZ is held in stock and ships within 24 hours; quotes are returned within 2 business hours. We ship worldwide including India, Vietnam and the Middle East.

Request a quote for COS620ARZ

Send us the part number and target quantity — we reply within 2 business hours with price, stock and a cross-reference confirmation.
