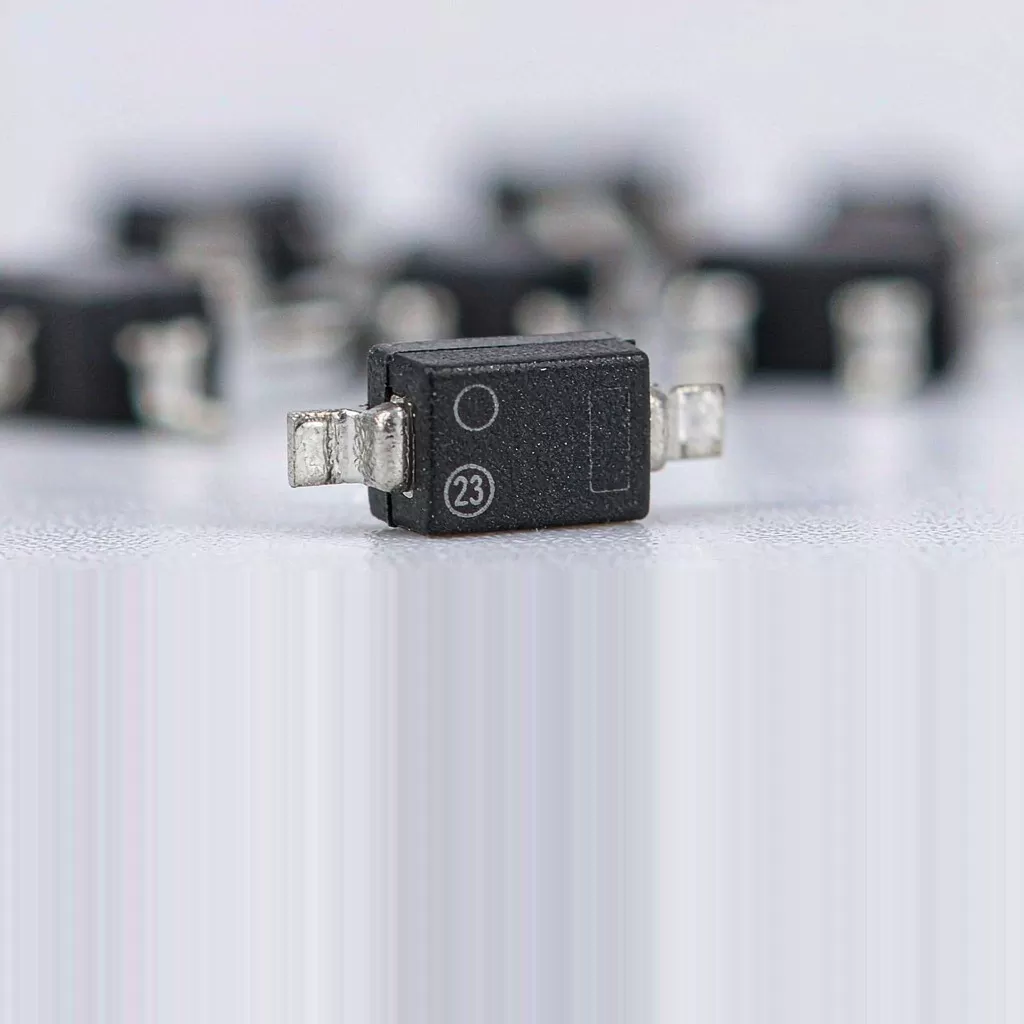

HP5082-2811 — Overview
HP5082-2811 by Avago is a component in the Schottky Diode category, supplied by Shenzhen Jinteng Electronics Technology Co., Ltd. (JTDZ Tech) — an independent distributor serving OEMs, ODMs and EMS providers worldwide.
The HP/Avago 5082-2811 is a 15 V Schottky barrier diode for RF mixing and detection, offering 410 mV forward voltage, 1.2 pF junction capacitance and a 20 mA current rating in a hermetic DO-35 glass axial package.
Key specifications
| Part number | HP5082-2811 |
| Manufacturer | Avago |
| Device type | Schottky Diode |
| Package | DO-35 (glass axial, HP Outline 15) |
| Package size | DO-35 glass body with axial leads (through-hole) |
| Stock | 1,914 pcs |
| Date code | 0611+ / 0611+ |
| Condition | Original, genuine & unused |
Datasheet parameters
| Breakdown Voltage VBR | 15 V min |
| Forward Voltage VF | 410 mV max @ 1 mA |
| Forward Current IF | 20 mA |
| Total Capacitance CT | 1.2 pF max @ 0 V, 1 MHz |
| Reverse Leakage IR | 100 nA max @ 8 V |
| Junction Temperature | 200 deg C max |
| Effective Carrier Lifetime | 100 ps max |
| Package Inductance (typ) | 2.0 nH |
Parameters above are transcribed from the manufacturer datasheet for reference only. Confirm the current datasheet revision and your application conditions before design-in.
Note: Verified package is DO-35 glass axial (HP Outline 15), NOT SOT-23
Stock, date code and availability
| Item | Detail |
|---|---|
| Available quantity | 1,914 pcs |
| Date code | 0611+ / 0611+ |
| Warehouse | Shenzhen, China |
| Condition | Original, genuine & unused |
| Packaging | Tape & reel / tube / tray as supplied by the manufacturer |
Stock levels move quickly. Confirm current availability, date code and lead time with our team before ordering.
Need a quote for HP5082-2811? Send your target quantity, destination and required date code to our sales team — we reply with price, stock and lead time within 2 working hours.
Related RF components
| NBB-500-T1 | SBB-1089Z | RF2373TR7 |
| QPA9426TR13 | SGA3463Z | RFPA5208TR13 |
| SBF-4089Z | WJA1500 | SGA-5263Z |
Browse the full Interface Chips / RF Chips collection, or request a quote for HP5082-2811.
Frequently asked questions
Is HP5082-2811 original and genuine?
Yes. We supply HP5082-2811 as original, unused stock sourced through long-verified, traceable channels, and we state the date code on every quotation. Traceability documents and inspection reports can be provided on request.
How much HP5082-2811 stock do you have?
1,914 pcs are currently listed (mixed date codes 0611+ / 0611+). Stock moves daily - send us your required quantity and we will confirm live availability and lead time.
What package does HP5082-2811 use?
HP5082-2811 is supplied in a DO-35 package (DO-35 glass body with axial leads (through-hole)). Always confirm the package, pinout and thermal pad layout against the current manufacturer datasheet before design-in.
Can you help confirm the HP5082-2811 parameters?
We do not host third-party datasheets. Send us the part number and the parameters you are qualifying (frequency, gain, power, package or temperature range) and our team will help you confirm them against the manufacturer data.
Do you quote volume orders for HP5082-2811?
Yes. We quote volume pricing, date code and lead time within 2 working hours, and we can consolidate HP5082-2811 with other line items into a single shipment.
All trademarks, brand names and part numbers are the property of their respective owners. JTDZ Tech is an independent distributor and is not an authorised distributor, franchisee or agent of the manufacturers named above.
