LFCG-490+ — Overview
LFCG-490+ by Mini-Circuits is a component in the LTCC Low Pass Filter category, supplied by Shenzhen Jinteng Electronics Technology Co., Ltd. (JTDZ Tech) — an independent distributor serving OEMs, ODMs and EMS providers worldwide.

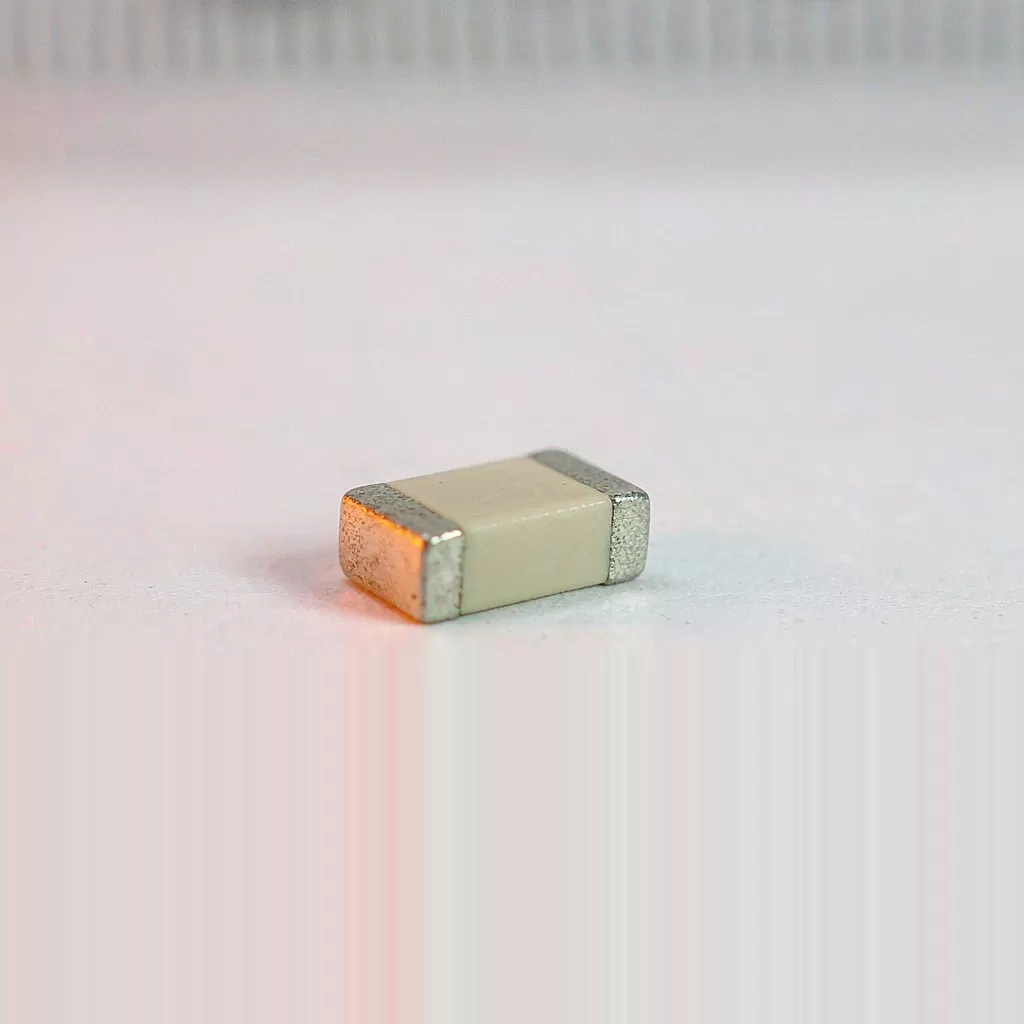

Mini-Circuits LFCG-490+ is an LTCC ceramic low-pass filter with a DC-490 MHz passband in an 0805 (GE0805C-2) package. It offers 1.5 dB typical insertion loss, 45 dB rejection and 3 W power handling.
Key specifications
| Part number | LFCG-490+ |
| Manufacturer | Mini-Circuits |
| Device type | LTCC Low Pass Filter |
| Package | GE0805C-2 / 0805 |
| Package size | 2.00 x 1.25 x 0.95 mm (0.079 x 0.049 x 0.037 in) |
| Stock | 1,831 pcs |
| Date code | 2135+ |
| Condition | Original, genuine & unused |
Datasheet parameters
| Passband | DC to 490 MHz |
| Cut-off frequency F2 (3 dB) | 590 MHz typ |
| Passband insertion loss | 1.5 dB typ, 2.0 dB max |
| Passband VSWR | 1.5:1 typ |
| Stopband rejection 800-960 MHz | 20 dB min, 50 dB typ |
| Stopband rejection 960-1500 MHz | 40 dB min, 48 dB typ |
| Stopband rejection 1500-3000 MHz | 35 dB min, 45 dB typ |
| Impedance | 50 ohm |
| RF power input | 3 W max @ 25 deg C (derate to 1.2 W @ 100 deg C) |
| Operating temperature | -55 to +100 deg C |
Parameters above are transcribed from the manufacturer datasheet for reference only. Confirm the current datasheet revision and your application conditions before design-in.
Note: Case style GE0805C-2 confirmed from Mini-Circuits datasheet and GE case-style drawing (98-GE). Demo board TB-799+.
