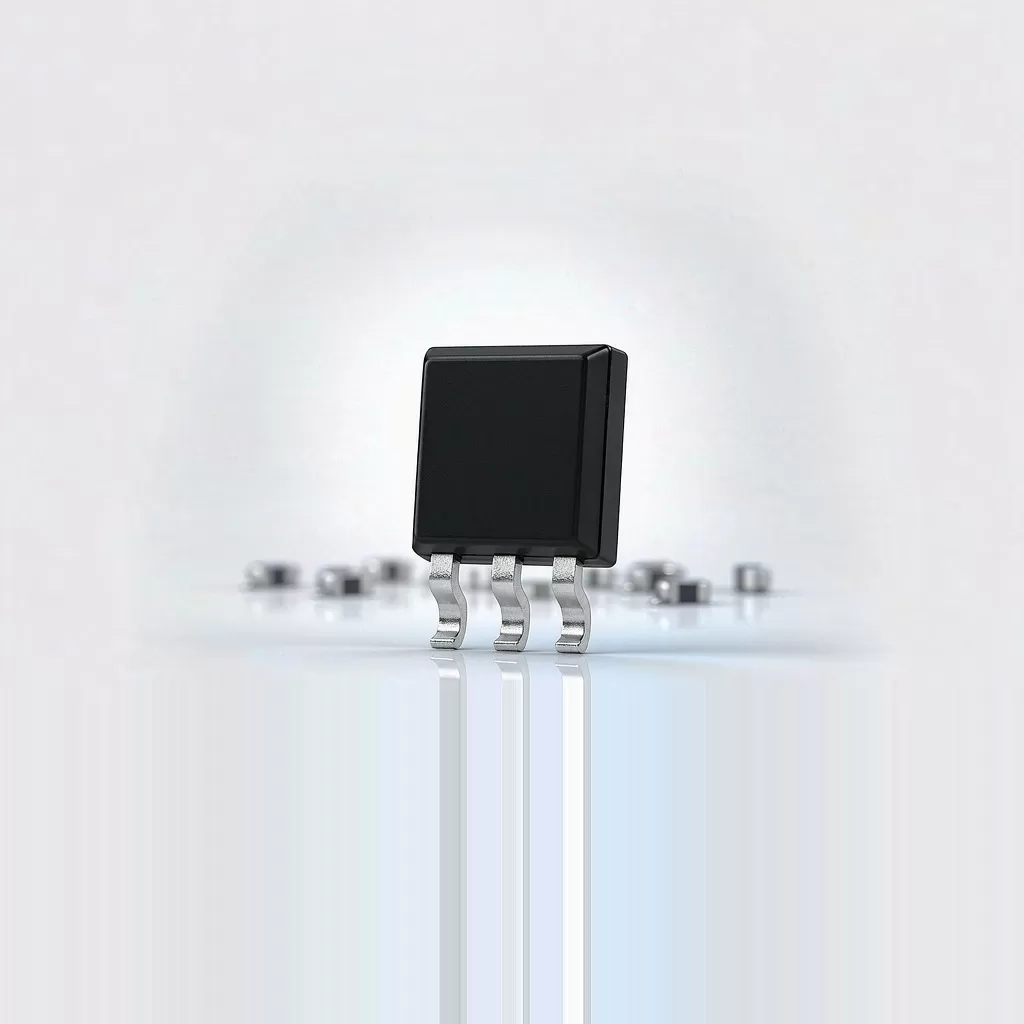

MGA-30889-BLKG — Overview
MGA-30889-BLKG by Avago is a component in the RF Amplifier (broadband Flat-gain High-linearity Gain-block MMIC) category, supplied by Shenzhen Jinteng Electronics Technology Co., Ltd. (JTDZ Tech) — an independent distributor serving OEMs, ODMs and EMS providers worldwide.
Avago/Broadcom MGA-30889-BLKG flat-gain, high-linearity 0.25 um GaAs e-pHEMT gain-block MMIC covering 40 MHz to 2.6 GHz with 15.9 dB gain, 38 dBm OIP3 and 5 V single supply, in a SOT-89 package.
Key specifications
| Part number | MGA-30889-BLKG |
| Manufacturer | Avago |
| Device type | RF Amplifier (broadband Flat-gain High-linearity Gain-block MMIC) |
| Package | SOT-89 |
| Package size | 4.5 x 4.1 x 1.5 mm |
| Stock | 1,863 pcs |
| Date code | 17+18+ |
| Condition | Original, genuine & unused |
Datasheet parameters
| technology | 0.25 um GaAs enhancement-mode pHEMT |
| frequency_range | 40 MHz to 2600 MHz |
| gain | 15.9 dB (flat, 15 dB +/- 0.25 dB over band) |
| noise_figure | 1.9 dB @ 900 MHz; 2 dB @ 1950 MHz |
| output_IP3_OIP3 | 38 dBm @ 900 MHz; 36 dBm @ 1950 MHz |
| output_power_P1dB | 20 dBm @ 900 MHz; 20.3 dBm @ 1950 MHz |
| supply_voltage | +5 V single supply |
| supply_current | 65 mA typ |
| moisture_sensitivity_level | MSL-2 |
Parameters above are transcribed from the manufacturer datasheet for reference only. Confirm the current datasheet revision and your application conditions before design-in.
Note: The '-BLKG' suffix denotes bulk/tray packaging. Junction temperature max 150 C; thermal resistance 76 C/W. Source is the Digi-Key-hosted original Avago datasheet.
Stock, date code and availability
| Item | Detail |
|---|---|
| Available quantity | 1,863 pcs |
| Date code | 17+18+ |
| Warehouse | Shenzhen, China |
| Condition | Original, genuine & unused |
| Packaging | Tape & reel / tube / tray as supplied by the manufacturer |
Stock levels move quickly. Confirm current availability, date code and lead time with our team before ordering.
Need a quote for MGA-30889-BLKG? Send your target quantity, destination and required date code to our sales team — we reply with price, stock and lead time within 2 working hours.
Related RF components
| NBB-500-T1 | SBB-1089Z | RF2373TR7 |
| QPA9426TR13 | SGA3463Z | RFPA5208TR13 |
| SBF-4089Z | WJA1500 | SGA-5263Z |
Browse the full Interface Chips / RF Chips collection, or request a quote for MGA-30889-BLKG.
Frequently asked questions
Is MGA-30889-BLKG original and genuine?
Yes. We supply MGA-30889-BLKG as original, unused stock sourced through long-verified, traceable channels, and we state the date code on every quotation. Traceability documents and inspection reports can be provided on request.
How much MGA-30889-BLKG stock do you have?
1,863 pcs are currently listed (date code 17+18+). Stock moves daily - send us your required quantity and we will confirm live availability and lead time.
What package does MGA-30889-BLKG use?
MGA-30889-BLKG is supplied in a SOT-89 package (4.5 x 4.1 x 1.5 mm). Always confirm the package, pinout and thermal pad layout against the current manufacturer datasheet before design-in.
Can you help confirm the MGA-30889-BLKG parameters?
We do not host third-party datasheets. Send us the part number and the parameters you are qualifying (frequency, gain, power, package or temperature range) and our team will help you confirm them against the manufacturer data.
Do you quote volume orders for MGA-30889-BLKG?
Yes. We quote volume pricing, date code and lead time within 2 working hours, and we can consolidate MGA-30889-BLKG with other line items into a single shipment.
All trademarks, brand names and part numbers are the property of their respective owners. JTDZ Tech is an independent distributor and is not an authorised distributor, franchisee or agent of the manufacturers named above.
