SC10002430

**Description**

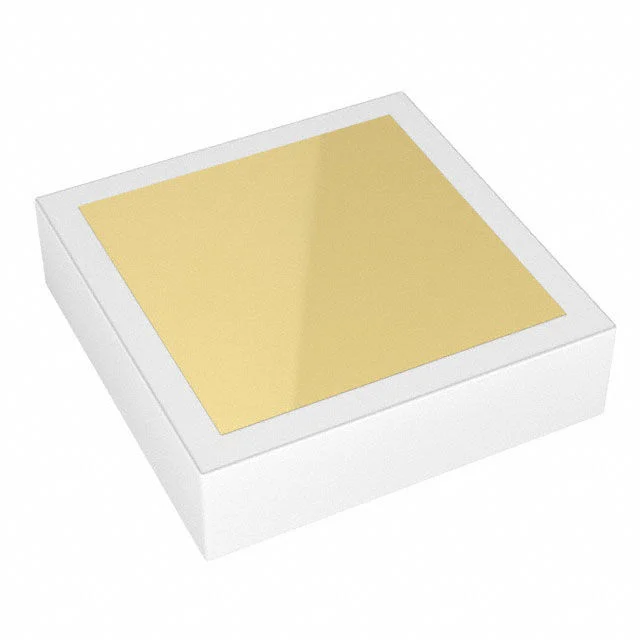

- Metal Insulator Silicon (MIS) chip capacitor
- Dielectric composed of thermally grown silicon dioxide with a deposited silicon nitride layer
- Single pad configuration
- Nonstandard chip surface mount package
- **Part Status:** Last Time Buy (LTB Date: 10/28/2026)

**Features**
- High reliability silicon oxide-nitride dielectric
- Low loss: typically 0.04 dB in a 50 Ω system
- Operation through 26 GHz
- Wide temperature operation: –65°C to +200°C
- Low temperature coefficient: < 50 ppm/°C
- High insulation resistance: > 105 MΩ
- High Q-factor compared to ceramic capacitors
- High dielectric breakdown permits thin dielectrics for large capacitance per unit area
- Excellent long-term stability
- RoHS compliant
- Moisture Sensitivity Level: MSL-1

**Key Specifications** (Typical)
| Parameter | Value |
|---|---|
| Capacitance | 100 pF |
| Tolerance | ±20% |
| Voltage – Breakdown | 100 V |
| Frequency Range | DC to 26.5 GHz |
| Insertion Loss | 0.04 dB (typ.) |
| Insulation Resistance | > 105 MΩ |
| Leakage Current | 1 nA |
| Temperature Coefficient | < 50 ppm/°C |
| Operating Temperature | –65°C to +200°C |
| Package / Case | Nonstandard Chip |
| Size / Dimension | 0.030" L x 0.030" W (0.76mm x 0.76mm) |
| Height | 0.006" (0.15mm) |
| Pad Dimension | 0.024" x 0.024" |
| Packaging | Tray |

**Applications**
- DC blocking
- RF bypassing
- Fixed capacitance tuning element in filters, oscillators, and matching networks
- High temperature applications
- Electronic Warfare
- Instrumentation
- Radar
- Space Surveillance Systems
- Military Communications
- Avionics

---

> **Note:** All parameters are subject to the official Skyworks SC10002430 datasheet. Specifications are typical values and may vary with operating conditions. This product is Last Time Buy – end-of-life date: October 28, 2026.
