SI2141-A10-GMR
-
When You'll Get It:Aug 25 - Aug 29
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract. Free shipping on orders over $10,000. For bulk buys, get a personal support rep and quick reimbursement if anything's defective.
**Description**
- Highly integrated digital TV tuner IC
- Supports all worldwide terrestrial and cable TV standards for digital TV reception
- Sixth-generation design leveraging five generations of field-proven digital TV tuner technology

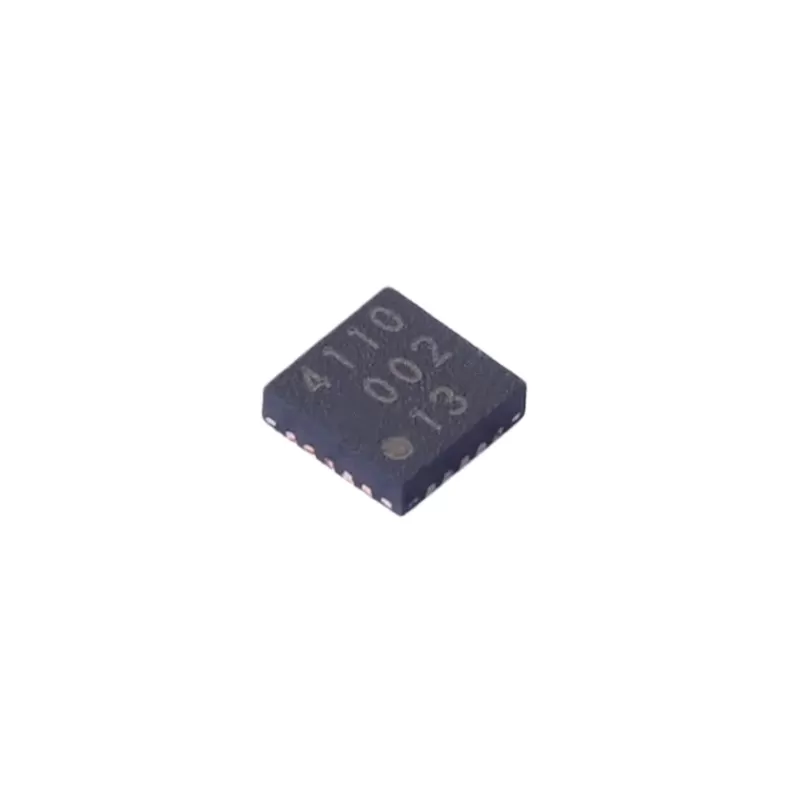

- Housed in a 24-pin QFN package (3x3 mm)
- **Part Status:** Active
**Features**
- Worldwide digital TV tuner supporting ATSC/QAM, DVB-T2/T/C2/C, ISDB-T/C, DTMB
- Eliminates need for external balun, LNAs, SAW filters, and inductive power supply filtering
- Fully integrated 1.8 V LDO for single-supply operation
- Dual supply option (1.8V and 3.3V) for additional system flexibility
- High immunity to LTE and Wi-Fi interference via harmonic rejection mixer
- Industry-leading phase noise performance
- Software-selectable cable mode for optimized return loss
- Single LIF output to SoC and/or demodulator
- Standard CMOS process technology
- Lowest bill-of-materials (BOM) cost for a silicon digital TV tuner
- Smallest footprint: 3x3 mm, RoHS-compliant 24-pin QFN package
- Moisture Sensitivity Level: MSL-2 (1 Year)
- RoHS compliant and halogen-free
**Key Specifications**
- Type: Digital TV Tuner
- Frequency Range: 42 MHz to 1002 MHz
- Supply Voltage: 1.8V, 3.3V
- Noise Figure: 3.6 dB
- Control Interface: GPIO
- Mounting Type: Surface Mount
- Package / Case: 24-VFQFN Exposed Pad
- Supplier Device Package: 24-QFN (3x3 mm)
- Packaging: Tape & Reel (TR), Cut Tape (CT), Digi-Reel®
- Standard Package Quantity: 2,500
- Operating Temperature Range: –40°C to +85°C (typical for consumer grade)
- Part Status: Active
**Applications**
- Digital TV (iDTV - Integrated Digital TV)
- Digital-NIM tuner modules
- Set-Top Boxes (STB)
- Blu-ray Disc Recorders
- Digital PVR / DVR
- DVD players with digital TV reception
- Consumer video equipment
---
> **Note:** All parameters are subject to the official Silicon Labs / Skyworks SI2141-A10-GMR datasheet. Specifications are typical values and may vary with operating conditions. For complete technical details, refer to the official datasheet available from Skyworks Solutions.
