SKY65386-11
-
When You'll Get It:Aug 25 - Aug 29
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract. Free shipping on orders over $10,000. For bulk buys, get a personal support rep and quick reimbursement if anything's defective.
**Description**
- High linearity Variable Gain Amplifier (VGA)
- Integrates an input linear amplifier, a Variable Voltage Attenuator (VVA), and an output Power Amplifier (PA) in a single device
- Optimized for superior ACLR performance with WCDMA signals
- High linearity (high OP1dB, OIP3, and ACLR) and high efficiency make it ideal for use at the final stage (or close to the final stage) of a wireless transmit chain
- RF_IN and RF_OUT are both internally matched, including DC blocking capacitors

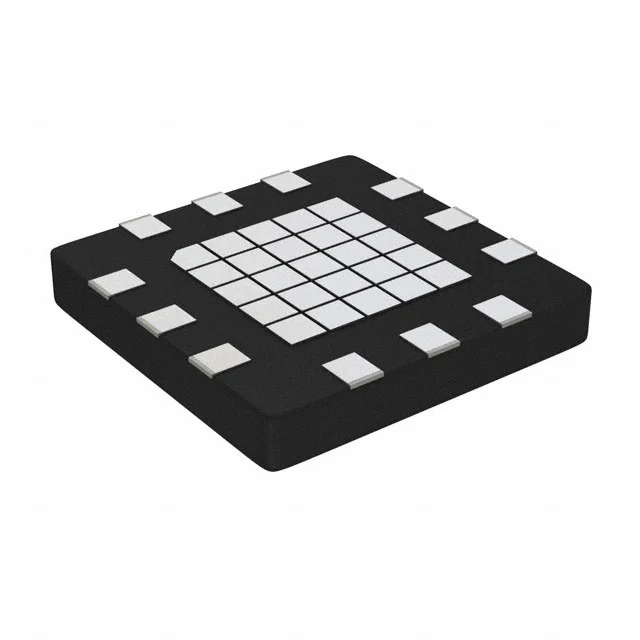

- Housed in a compact, 8.385 x 8.385 mm 12-pin Multi-Chip Module (MCM) SMT package
- **Product Status:** Last Time Buy (Not Recommended for New Designs)
**Features**
- Frequency range: 2575 to 2735 MHz
- High gain: 25.5 dB (typical)
- Attenuation range: 42 dB (or 38 dB typical)
- Output P1dB (OP1dB): +28.5 dBm
- Output IP3 (OIP3): +41.5 dBm (or +44 dBm typical)
- ACLR < -70 dBc for POUT = +12 dBm
- Single DC supply: +5 V
- Small MCM (12-pin, 8.385 x 8.385 mm) SMT package
- Moisture Sensitivity Level: MSL3, 260 °C per JEDEC J-STD-020
**Key Specifications**
- Operating Frequency: 2575 MHz ~ 2735 MHz
- Gain: 25 dB (typical)
- Noise Figure: 3.9 dB
- Output P1dB: 28.5 dBm
- Supply Voltage: 5V
- Supply Current: 340mA
- Package / Case: 12-SMD Module / 12-MCM (8.4mm x 8.4mm)
- Supplier Device Package: 12-MCM (8.4mm x 8.4mm)
**Applications**
- Base stations / transmit chains
- Repeater transmit chains
- Femto cells
---
> **Note:** All parameters are subject to the official Skyworks SKY65386-11 datasheet. Specifications are typical values and may vary with operating conditions. This product is Last Time Buy and is not recommended for new designs.
