AS169-73LF
-
When You'll Get It:Aug 25 - Aug 29
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract. Free shipping on orders over $10,000. For bulk buys, get a personal support rep and quick reimbursement if anything's defective.
**Description**
- PHEMT GaAs IC FET SPDT switch

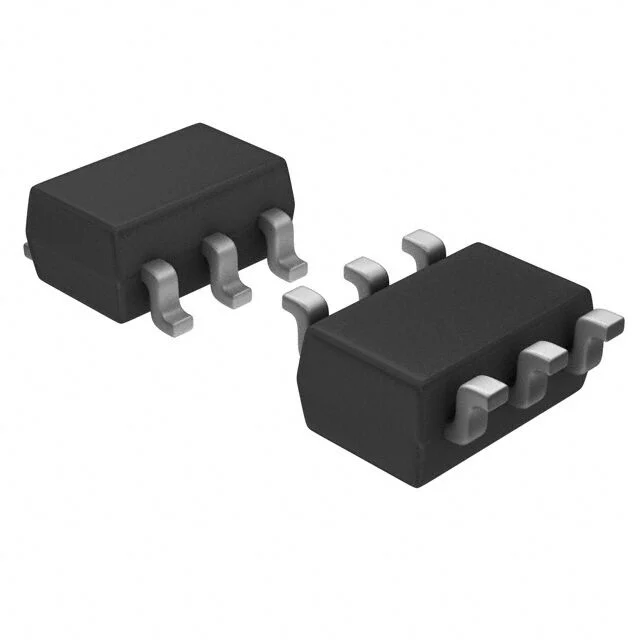

- Housed in a low-cost, ultra-miniature SOT-6 plastic package
- General-purpose switch for a variety of telecommunications applications
- Reflective termination
- **Product Status:** In Production
**Features**
- Low insertion loss: 0.3 dB typical @ 0.9 GHz
- High isolation: 24 to 25 dB typical
- High linearity: IP3 52 dBm typical
- High power handling: P1dB +30 dBm typical @ +3V
- Low DC power consumption
- Positive voltage operation: 3V to 5V
- 50Ω impedance
- Surface mount package: SOT-6 (2.8 x 2.9 x 1.18 mm)
- Operating temperature range: –40°C to +85°C
- RoHS compliant
**Key Specifications** (Typical)
- Frequency Range: 0.3 MHz to 2.5 GHz
- Insertion Loss: 0.3 to 0.4 dB
- Isolation: 24 to 25 dB
- P1dB: +30 dBm typical
- IP3: 52 dBm typical
- IIP3: 48 dBm typical
- Supply Voltage: 3V to 5V
- Impedance: 50Ω
- Package: SOT-6
- Operating Temperature: –40°C to +85°C
**Applications**
- General-purpose medium-power switching in telecommunications
- T/R (transmit/receive) switching in 802.11b/g WLAN and Bluetooth systems
- Wireless systems
- Test equipment
- Communications and networking equipment
---
> **Note:** All parameters are subject to the official Skyworks AS169-73LF datasheet. Specifications are typical values and may vary with operating conditions. This is an ESD sensitive device; take proper precautions while handling.
