COS128U - INA128U Alternative | COSINE Precision Instrumentation Amplifier

Cross-reference  ·  Before you substitute  ·  Related parts  ·  FAQ  ·  Request a quote

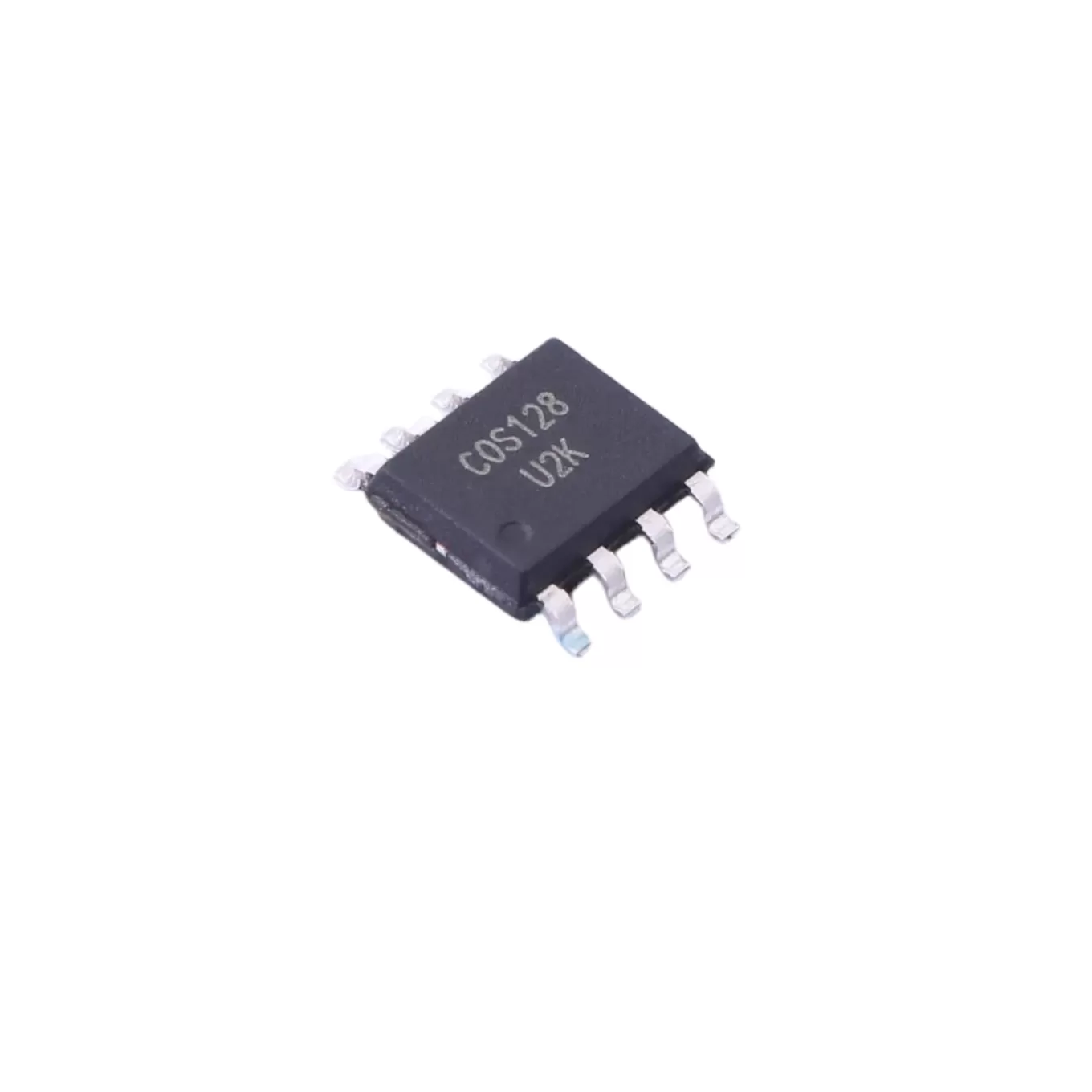

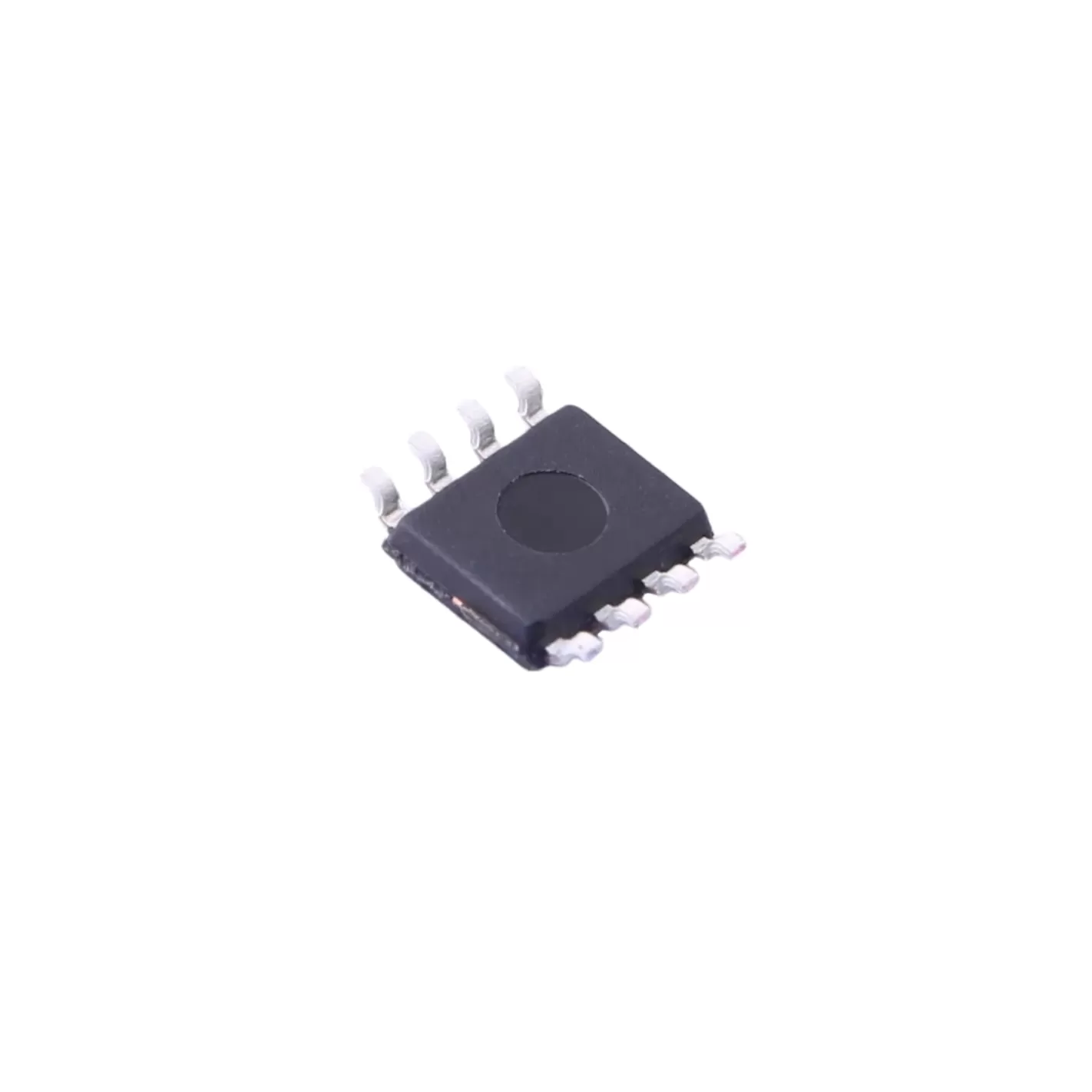

COS128U — Precision Instrumentation Amplifier, alternative to INA128U

COS128U is supplied by Shenzhen Jingteng Electronics (JTDZ Tech) as a domestically sourced option for INA128U (TI). Imported parts in this class are frequently subject to allocation, long lead times and steep price swings. A Chinese-manufactured equivalent removes that exposure: the parts are production-validated in industrial, consumer and automotive designs and ship from stock on a short lead time.

Cross-reference chart — which imported parts does COS128U replace?

Every imported part number that COS128U is published as a cross-reference alternative to, per the COSINE (科山芯创) 2025 selection table:

Cross-reference means functional equivalence in the same application role. It is not a blanket claim of pin-for-pin identity — confirm package, pinout and the parameters listed below before you release a design change.

Device information

What to verify before substituting COS128U

These are the parameters that decide whether a cross-reference works in practice. Run through the list against the datasheet before releasing a change:

1. Gain equation and the external gain-set resistor value — the transfer function must match exactly
2. Gain error and gain drift, plus the gain-set resistor tolerance the part actually demands
3. Common-mode rejection ratio, especially at the mains frequency and its harmonics
4. Input offset voltage and drift, referred to input at your maximum gain
5. Input bias current and input impedance against the bridge or sensor source impedance
6. Supply range (single- vs dual-supply operation) and output swing to the rails
7. Reference pin behaviour and package/pinout

Typical applications

• Bridge and load-cell signal conditioning
• Thermocouple, RTD and strain-gauge front ends
• Medical instrumentation and ECG/EEG front ends
• Industrial 4–20 mA and PLC analogue inputs
• Data acquisition systems
• Precision current and pressure sensing

Related COSINE parts and alternatives

Other {BRAND} parts in the same device family or the same device class — useful when you are cross-referencing a whole BOM rather than a single line item.

Frequently asked questions

What does COS128U replace?

According to the COSINE (科山芯创) 2025 cross-reference table, COS128U is published as an alternative to INA128U (TI).

Is COS128U a pin-to-pin drop-in for INA128U?

Cross-reference means the part is intended for the same application role; it is not a blanket guarantee of pin-for-pin identity. Check package, pinout and the parameters listed under “What to verify” above, or send us your BOM and we will confirm before you commit.

Can you supply the INA128U as well?

Yes. We source both the imported and the Chinese-manufactured alternative, so you can compare price, lead time and availability on the same quote.

What is the MOQ and lead time for COS128U?

MOQ 1 pc. COS128U is held in stock and ships within 24 hours; quotes are returned within 2 business hours. We ship worldwide including India, Vietnam and the Middle East.

Request a quote for COS128U

Send us the part number and target quantity — we reply within 2 business hours with price, stock and a cross-reference confirmation.
