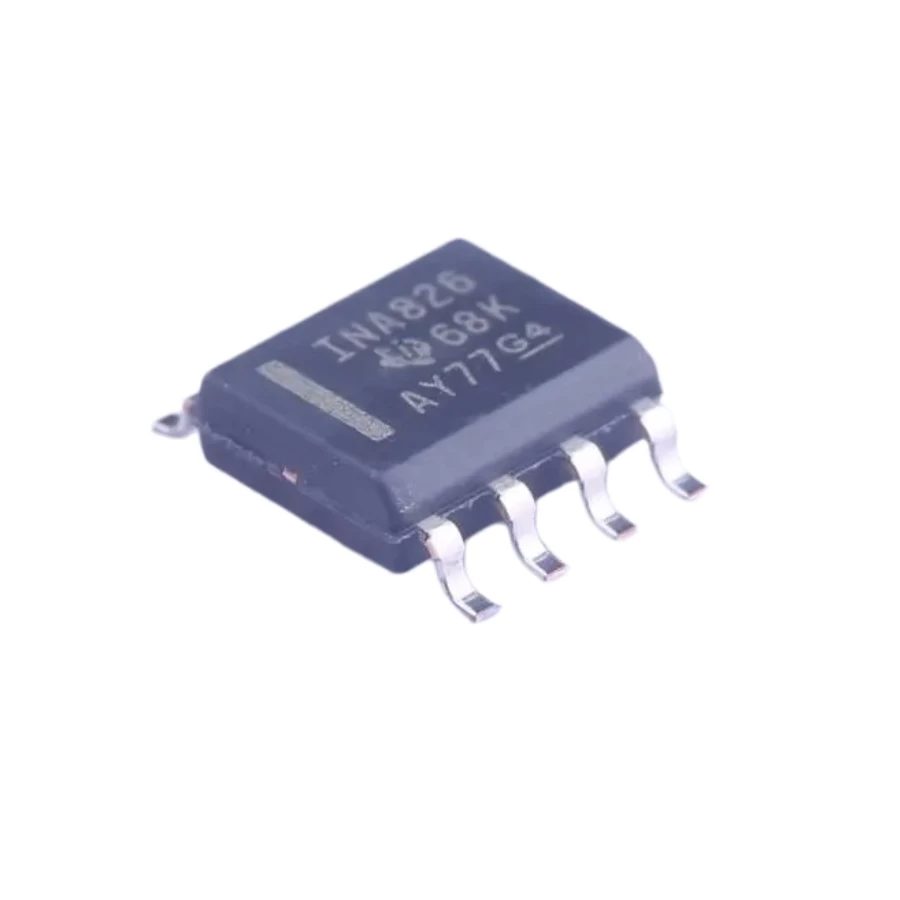

INA826AIDR
Generate QR code
-
When You'll Get It:Aug 25 - Aug 29
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract. Free shipping on orders over $10,000. For bulk buys, get a personal support rep and quick reimbursement if anything's defective.
Product description
Shipping & Return
description
The INA826 is a cost-effective instrumentation amplifier that offers extremely low power consumption and operates over a very wide single-supply or dual-supply range. A single external resistor sets any gain from 1 to 1000. The device offers excellent stability over temperature, even at G > 1, as a result of the low gain drift of only 35 ppm/°C (maximum).
The INA826 is optimized to provide excellent common-mode rejection ratio of over 100 dB (G = 10) over frequencies up to 5 kHz. At G = 1, the common-mode rejection ratio exceeds 84 dB across the full input common-mode range, from the negative supply all the way up to 1 V of the positive supply. Using a rail-to-rail output, the INA826 is a great choice for low-voltage operation from a 3-V single supply, as well as dual supplies up to ±18 V.
Additional circuitry protects the inputs against overvoltage of up to ±40 V beyond the power supplies by limiting the input currents to less than 8 mA.
The INA826 is available in 8-pin SOIC, VSSOP, and tiny 3-mm × 3-mm WSON surface-mount packages. All versions are specified for the –40°C to +125°C temperature range.
Feature
• Input common-mode range: Includes V–
• Common-mode rejection:
• 104 dB, min (G = 10)
• 100 dB, min at 5 kHz (G = 10)
• Power-supply rejection: 100 dB, min (G = 1)
• Low offset voltage: 150 µV, max
• Gain drift: 1 ppm/°C (G = 1), 35 ppm/°C (G > 1)
• Noise: 18 nV/√Hz, G ≥ 100
• Bandwidth: 1 MHz (G = 1), 60 kHz (G = 100)
• Inputs protected up to ±40 V
• Rail-to-rail output
• Supply current: 200 µA
• Supply range:
• Single supply: 3 V to 36 V
• Dual supply: ±1.5 V to ±18 V
• Specified temperature range: –40°C to +125°C
• Packages: 8-pin VSSOP, SOIC, and WSON
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
