MAATSS0018TR-3000
-
When You'll Get It:Aug 25 - Aug 29
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract. Free shipping on orders over $10,000. For bulk buys, get a personal support rep and quick reimbursement if anything's defective.
**Description**
- 1-bit, 10 dB step GaAs MMIC digital attenuator

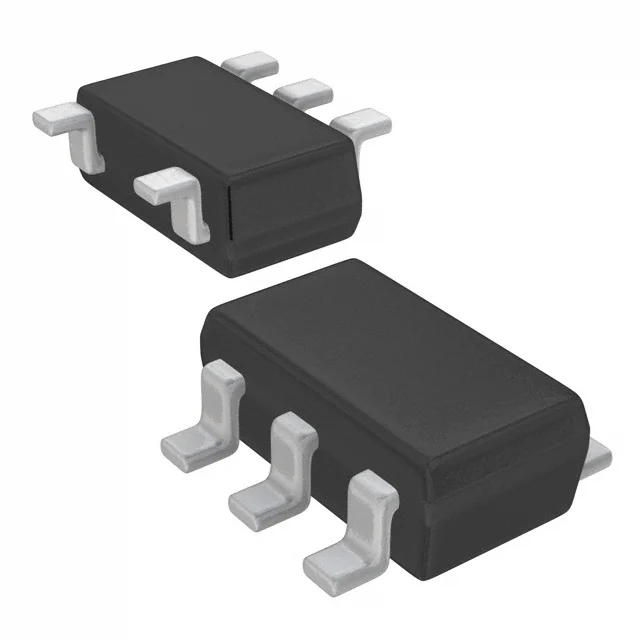

- Housed in a lead-free SOT-25 surface mount plastic package
- Uses a mature 1-micron GaAs process with full chip passivation for increased performance and reliability
- RoHS compliant version of AT-266
- **Product Status:** Active / In Production
**Features**
- Single 10 dB step attenuation
- Low insertion loss: 0.3 dB @ 900 MHz
- High accuracy and very low power consumption
- Low intermodulation products
- 260°C reflow compatible
- Halogen-free “green” mold compound
- 100% matte tin plating over copper
- Lead-free SOT-25 package
- 50 Ohms impedance
- Tape and reel packaging: 3,000 pcs./reel
- Moisture Sensitivity Level: MSL-1
**Key Specifications** (Typical @ 25°C)
- Frequency Range: DC to 2 GHz
- Minimum Frequency: 100 MHz
- Maximum Frequency: 2000 MHz
- Attenuation Range: 0 to 10.5 dB
- Attenuation Step: 10 dB
- Insertion Loss: 0.3 to 0.7 dB
- Bit Count: 1
- P1dB: 28 dBm
- IIP3: 50 dBm
- Input IP3: 50 dBm
- Switching Time: 5 ns (Rise, Fall), 10 ns (Ton, Toff)
- Control Voltage: -8.5 to 8 V
- Current: 25 µA
- Impedance: 50 Ohms
- VSWR: 1.40:1
- Power: 0.63 W (28 dBm)
- Operating Temperature: –40°C to +85°C
- Storage Temperature: –65°C to +150°C
- Package / Case: SOT-25 (SC-74A)
- Supplier Device Package: SC-74A, SOT-753
**Applications**
- Radio systems
- Wireless LANs (WLAN)
- GPS equipment
- ISM band applications
- Gain and level control circuits
- Wireless networking and communication
---
> **Note:** All parameters are subject to the official MACOM MAATSS0018 datasheet. Specifications are typical values and may vary with operating conditions. Please verify all specifications with the manufacturer's official documentation before use.
