MAVR-000340-11410T

**Description**
- Ion-implanted, hyperabrupt junction, silicon tuning varactor
- Part of the MAVR-0003 series designed for high capacitance ratio and low voltage operation
- Capacitance ratio better than 3:1 between 0.5V and 3.0V

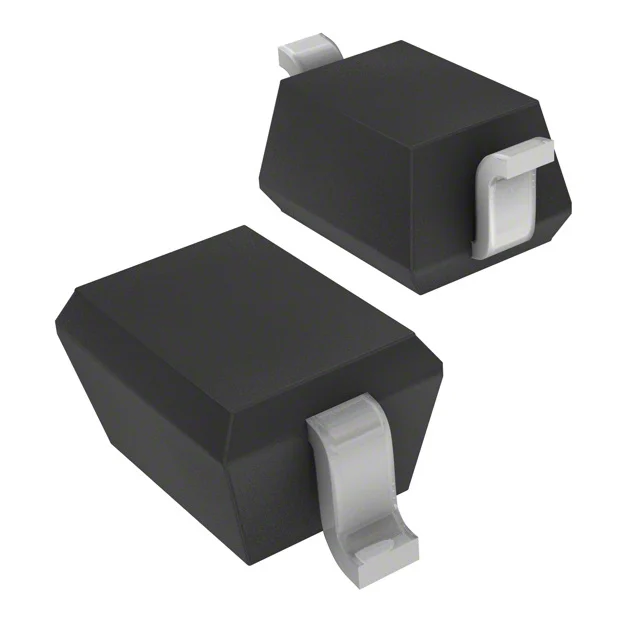

- Housed in a SOD-323 surface mount package
- **Product Status:** Active

**Features**
- High capacitance ratio at low voltages
- High Q at low voltages
- SPC process for superior C‑V repeatability
- Low series resistance (Low Rs)
- Surface mount package: SOD-323
- Tape and reel packaging
- RoHS compliant with 260°C reflow capability
- Designed for commercial wireless applications
- Available as single diode configuration
- Moisture Sensitivity Level: MSL‑1

**Key Specifications** (Typical @ TA = +25°C)
- Reverse Voltage (VR): 12 V maximum
- Forward Current (IF): 50 mA maximum
- Total Power Dissipation: 250 mW maximum
- Operating Temperature: –65°C to +125°C
- Storage Temperature: –65°C to +150°C
- Total Capacitance @ VR = 0.5V, 1MHz: 15.0 pF min / 18.5 pF nom / 21.0 pF max
- Total Capacitance @ VR = 3.0V, 1MHz: 6.5 pF max
- Capacitance Ratio (C0.5/C3.0): 3.2 typ
- Q Factor @ 50MHz, VR = 2.0V: 350 min
- Breakdown Voltage @ IR = 10mA: 12 V min
- Reverse Leakage Current @ VR = 10V: 100 nA max
- Package Parasitics: Cp = 0.15 pF, Ls = 1.4 nH
- Package / Case: SOD‑323 (SC‑76)
- Supplier Device Package: SOD‑323

**Applications**
- Wide band tuning applications
- Low phase noise VCOs (Voltage Controlled Oscillators)
- Voltage tuned filters
- Wireless applications up to 2.4 GHz WLAN band
- ISM band applications
- Low voltage operation (supply voltage ≤ 5V)

---

> **Note:** All parameters are subject to the official MACOM MAVR-0003 Series datasheet (Rev. V2). Specifications are typical values and may vary with operating conditions. Please verify all specifications with the manufacturer's official documentation before use.
