RF1126TR7

**Description**
- Broadband medium power single-pole double-throw (SPDT) reflective switch
- Designed for general purpose switching applications requiring very low insertion loss and medium power handling capability
- Ideally suited for battery operated applications requiring high performance switching with very low DC power consumption
- Fabricated with 0.5μm GaAs pHEMT process

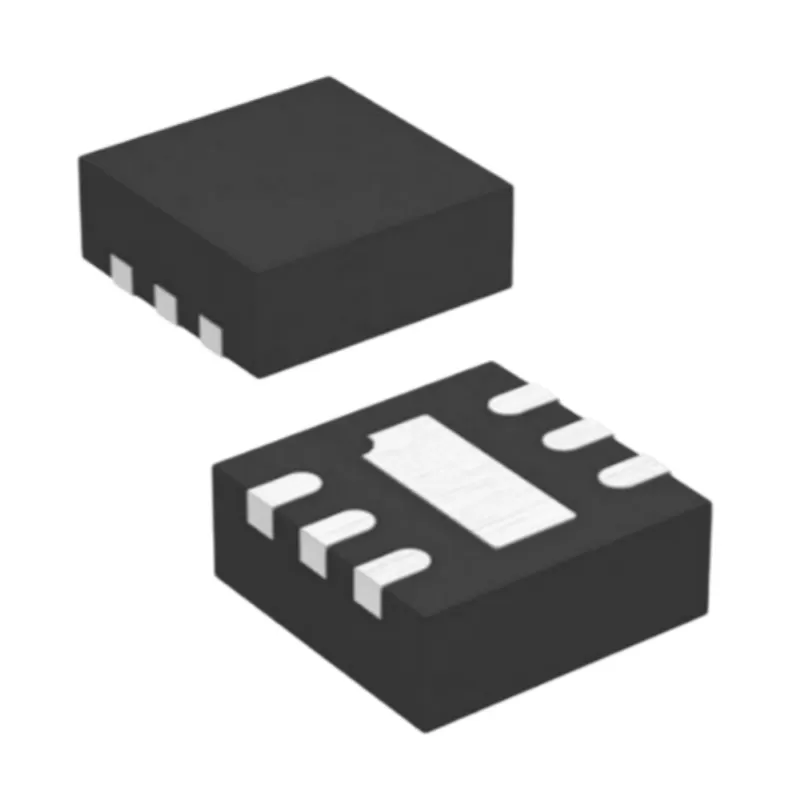

- Packaged in a very compact 2.0mm x 1.3mm, 6-pin leadless QFN package
- **Product Status:** Discontinued / End of Life (EOL announced January 15, 2021; Last Time Buy: July 30, 2021)

**Features**
- Broadband performance: low frequency to 6GHz
- Very low insertion loss: 0.26dB typ. at 1GHz; 0.32dB typ. at 2GHz
- Excellent harmonics: <-75dBc at 2GHz
- High IIP3: 62dBm typ.
- 1.8V capable for low power applications
- P0.1dB > 23dBm typ. @ 2GHz
- Very compact footprint: 2.0mm x 1.3mm x 0.35mm, 6-pin QFN
- Operable from 1.8V to 3.6V control voltage
- 50Ω impedance
- Reflective topology
- RoHS compliant and Pb-free

**Key Specifications** (Typical @ 25°C)
- Frequency Range: 50MHz to 5.8GHz
- Circuit Type: SPDT (Single-Pole Double-Throw)
- Topology: Reflective
- Impedance: 50Ω
- Insertion Loss: 0.7dB @ 5.8GHz (typ.)
- Isolation: 11dB @ 5.8GHz (typ.)
- IIP3: 60dBm (typ.)
- Supply Voltage: 1.8V to 3.6V
- Operating Temperature: –30°C to +85°C
- Package / Case: 6-XFDFN Exposed Pad
- Supplier Device Package: 6-QFN (2.0mm x 1.3mm)

**Applications**
- Cellular handset applications
- Antenna tuning applications
- IEEE802.11b/g WLAN applications
- Multi-mode GSM, W-CDMA applications
- Wireless infrastructure
- General purpose signal routing

---

> **Note:** All parameters are subject to the official Qorvo RF1126 datasheet. Specifications are typical values and may vary with operating conditions. This product is discontinued – End of Life announced January 15, 2021; Last Time Buy: July 30, 2021. Not recommended for new designs.
