SGA-4263Z
-
When You'll Get It:Aug 25 - Aug 29
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract. Free shipping on orders over $10,000. For bulk buys, get a personal support rep and quick reimbursement if anything's defective.
**Description**
- DC - 3500 MHz Cascadable SiGe HBT MMIC Amplifier
- High performance SiGe HBT MMIC Amplifier in a Darlington configuration featuring one-micron emitters
- Heterojunction increases breakdown voltage and minimizes leakage current between junctions
- Cancellation of emitter junction non-linearities results in higher suppression of intermodulation products

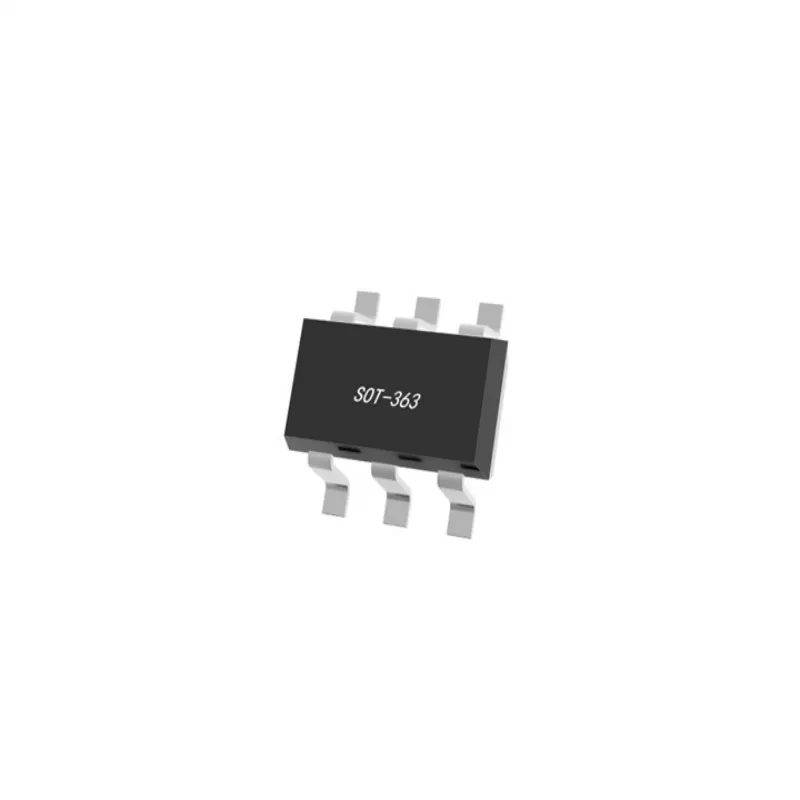

- Housed in SOT-363 surface mount package
- **Product Status:** Discontinued / End of Life (EOL announced March 14, 2016; Last Time Buy September 21, 2016)
**Features**
- Broadband Operation: DC to 3500MHz
- Cascadable 50 ohm
- Operates from Single Supply
- Low Thermal Resistance Package
- Only two DC-blocking capacitors, a bias resistor, and an optional RF choke required for operation
- Available in Lead Free, RoHS Compliant, and Green Packaging (Z Part Number)
- High FT and excellent thermal performance
**Key Specifications** (Typical)
| Parameter | Value |
|---|---|
| Frequency Min | DC |
| Frequency Max | 3,500 MHz |
| Gain | 12.7 dB |
| Output P1dB (OP1dB) | 12.5 dBm |
| Output IP3 (OIP3) | 25.7 dBm |
| Noise Figure (NF) | 3.7 dB |
| Supply Voltage | 6 V |
| Current | 45 mA |
| Package Type | SOT-363 |
| ECCN | 5A991.G |
**Applications**
- Cellular
- GSM
- PCS
- UMTS
- Broadband gain block applications
- General purpose RF amplification
---
> **Note:** All parameters are subject to the official Qorvo SGA4263Z datasheet. Specifications are typical values and may vary with operating conditions. This product is discontinued – not recommended for new designs. Recommended replacement: QPA4263A.
