SMS7621-074
-
When You'll Get It:Aug 25 - Aug 29
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract. Free shipping on orders over $10,000. For bulk buys, get a personal support rep and quick reimbursement if anything's defective.
**Description**
- Surface mount silicon mixer Schottky diode
- Low-cost, plastic packaged design for RF and microwave mixers and detectors
- Low barrier diode with zero-bias detection capability
- Common cathode configuration (dual diode)

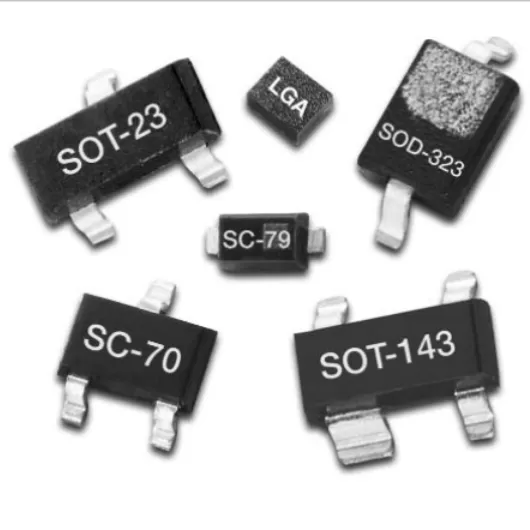

- Housed in a 3‑pin SC‑70 surface mount package
- Marking code: SH3
- **Product Status:** Obsolete / End of Life (EOL)
**Features**
- Designed for high-volume commercial applications
- Tight parameter distribution for minimized performance variability
- Low barrier Schottky technology
- Zero-bias detector capability
- Available in tape and reel packaging
- 100% DC tested
- SPICE model parameters included as a design tool
- Moisture Sensitivity Level: MSL-1 @ 260°C per JEDEC J-STD-020
- Operating frequency up to 10 GHz
- Available in lead (Pb)-free and RoHS-compliant packaging (SMS7621‑074LF)
**Key Specifications** (Typical @ 25°C)
- Diode Configuration: Common Cathode (Dual)
- Maximum Frequency: 10 GHz
- Junction Capacitance (Cj): 0.1 pF
- Total Capacitance (Ct): 0.3 pF
- Series Resistance (Rs): 12 Ω
- Maximum Reverse Voltage (VR): 2 V (min)
- Maximum Forward Voltage (VF): 0.32 V @ 1 mA
- Forward Current (IF): 50 mA max
- Power Dissipation (PD): 75 mW max
- Operating Temperature (TOP): –65°C to +150°C
- Storage Temperature (TST): –65°C to +150°C
- Junction Temperature (TJ): 150°C max
- Package / Case: SC‑70 (3‑pin)
- Package Inductance (LS): 1.4 nH
**Applications**
- RF and microwave mixers
- RF and microwave detectors
- Sensitive RF detector circuits
- Sampling circuits
- Low noise receivers
- High sensitivity ID tags
- Wireless systems and radio designs
---
> **Note:** All parameters are subject to the official Skyworks datasheet (Document No. 200041). Specifications are typical values and may vary with operating conditions. This product is obsolete and not recommended for new designs. For lead-free version, refer to SMS7621‑074LF.
