Everyone in component sourcing knows how to compare two prices. Almost nobody compares the other two layers of the cost, which is why a "cost-down" replacement so often ends up costing more than the part it replaced. For op-amps this matters more than for most components, because an amplifier sits inside a measurement chain where a small parameter change can propagate into a specification you have promised a customer.
Layer 1: unit price

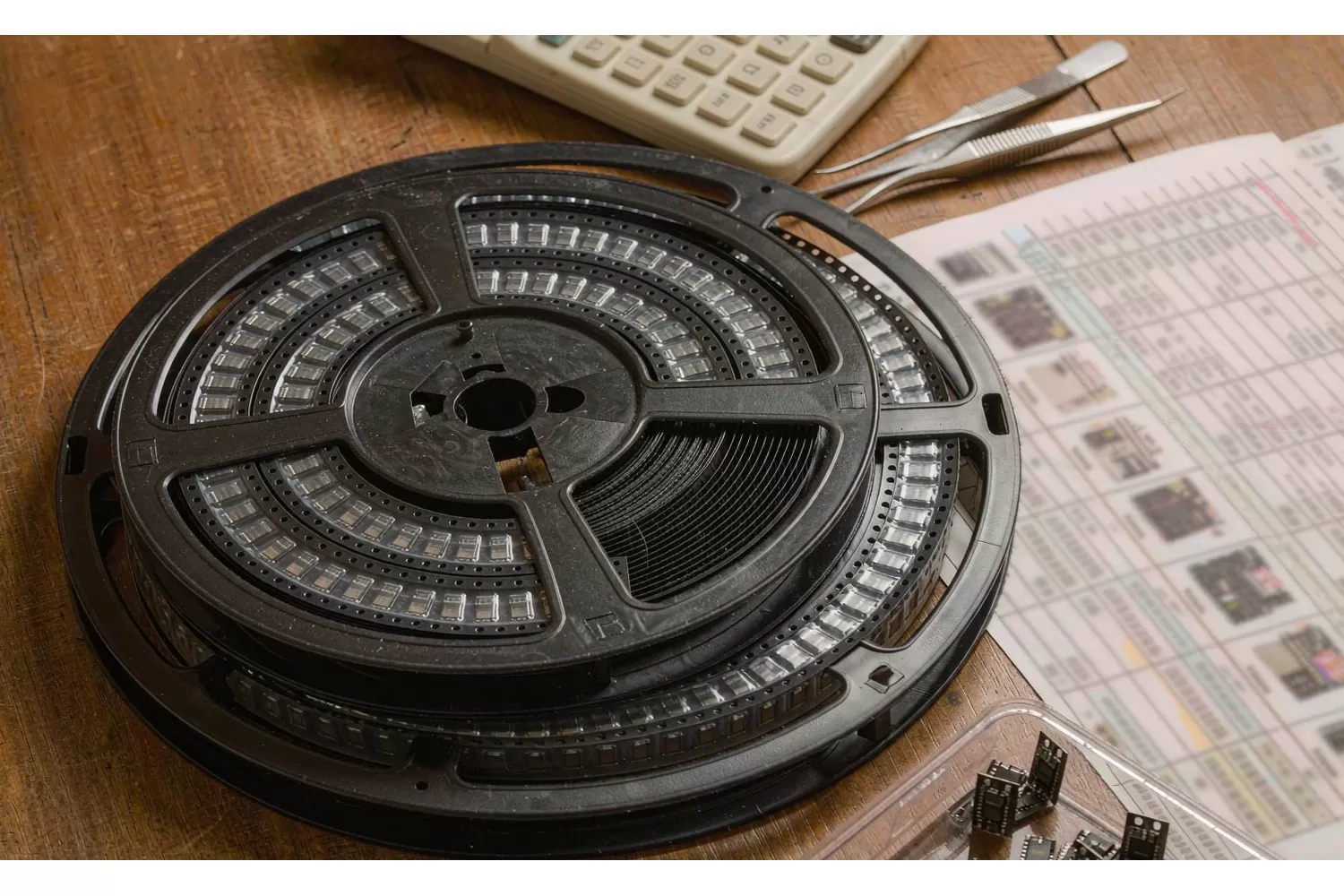

The layer everyone computes. Two cautions are worth repeating. First, compare at the same package and the same minimum order quantity; a lower unit price with a larger reel is a bigger inventory commitment. Second, remember that the price is sensitive to quantity and to market conditions, so a comparison made from two different sources at two different times is not a comparison. For a genuinely current figure, ask for a quote at your real annual volume rather than trusting a page price.
Layer 2: one-off validation cost
The layer nobody budgets. Replacing an amplifier in a live design is not a datasheet exercise. A realistic validation for a sensor front end includes:
| Activity | Why it is needed | Rough effort |
|---|---|---|
| Bench re-characterisation | Confirm gain, offset and bandwidth on real hardware | 0.5–1 day |
| Temperature sweep | Verify drift behaviour the substitution changed | 0.5–1 day |
| Repeatability / long soak | Catch 1/f noise and low-frequency instability | 1–3 days elapsed |
| Stability with real load and cable | Rule out the marginal-phase-margin case | 0.5 day |
| Documentation and approval | Update the BOM record and the accuracy claim | 0.5 day |
Total: typically two to four engineering days, plus the change-control overhead. Put a number on that day rate and compare it with the per-unit saving. A two-cent saving on a 100,000-unit build is ¥2,000 — less than a single day of engineering. The arithmetic usually says the saving only becomes real at volumes far above the ones most teams actually ship.
Layer 3: risk cost
The hardest layer to quantify and the one that decides the outcome. Four recurring risks:
- A parameter that was not on the comparison sheet. Supply rejection at switching frequency, output swing at your load, input crossover behaviour, current noise at your source impedance. Any of these can break a design that passed every headline test.
- Batch spread. A second source may hold typical figures but show wider distribution at the tails. Designs built on typical values fail at the tails.
- Field discovery. The failure mode of an analog substitution is usually gradual degradation, not a hard stop, so it shows up in customer complaints rather than in test.
- Re-reversal cost. If the substitute does not work, you have paid the validation cost twice and delayed a build.
A decision table you can actually use
| Stage type | Substitution risk | Recommended action |
|---|---|---|
| Indicator, DC buffer, LED drive | Low | Substitute freely on price and availability |
| General-purpose gain block, tolerant accuracy | Low to moderate | Bench check only; verify offset and output swing |
| Precision DC or instrumentation front end | High | Full temperature validation before any change |
| High-speed sampling or cable-driving stage | High | Stability re-qualification plus load testing |
| Anything in a safety, medical or automotive path | Very high | Treat as a design change, not a substitution |
Our own rule of thumb: substitute where the error budget is dominated by tolerances you already accept, and leave the precision stages alone. The engineering cost of protecting a two-cent saving is almost always larger than the saving, and the parts you keep are the reason the product still meets its specification two years from now.
| Model | Position | Typical substitution case | Link |
|---|---|---|---|
| LM358SR | 36 V general purpose | Replacing an LM358-class socket in a non-critical stage | LM358SR |
| COS324SR | General purpose, quad | Multi-channel DC-level and indicator buffering | COS324SR |
| COS5532SR | General purpose, low noise | Audio and moderate-accuracy analog stages | COS5532SR |
See amplifiers and data conversion for the full portfolio. If you are planning a cost-down, send us the stage you want to change and the accuracy you promise; we will tell you honestly which of the eight parameters actually matter and which substitutions are free.
