Transimpedance Front Ends: Reading Photodiodes and Current-Output Sensors with Precision Op-Amps

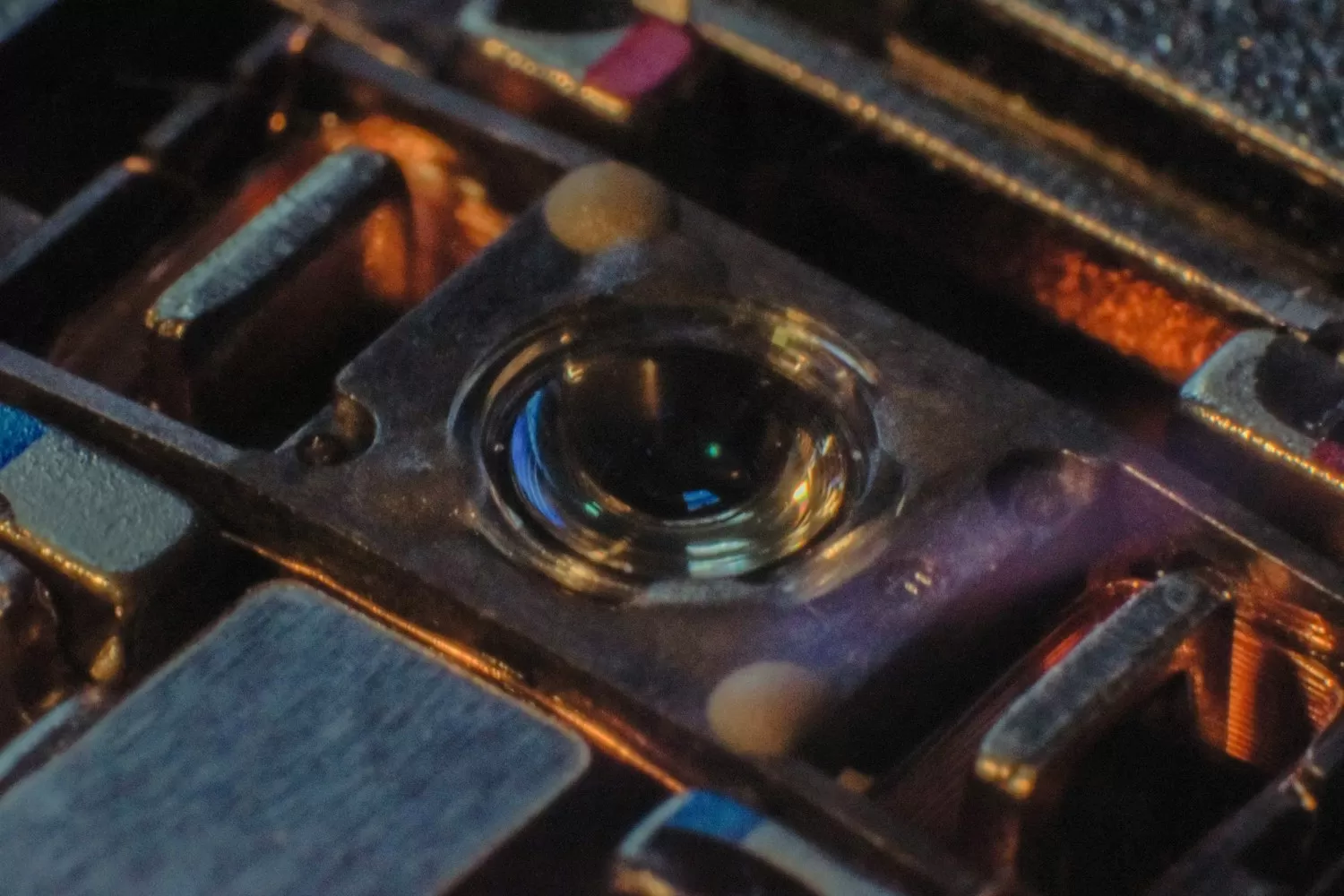

The transimpedance amplifier (TIA) is the quiet workhorse behind photodiodes, particle sensors, smoke detectors, optical encoders, and any current-output transducer. It is also the circuit where "it oscillates" and "it reads 20% high" complaints originate — because a TIA is a stability problem first and a gain problem second.

The core idea and its hidden complication

Ideally, a TIA converts sensor current I_D to V_OUT = I_D·R_F, with the op-amp holding the photodiode at virtual ground so its capacitance never charges. The complication: the diode's junction capacitance C_D (often 5–100 pF, larger for big-area detectors) adds a pole right in the feedback loop. Without a compensation capacitor C_F across R_F, the noise gain curve crosses the open-loop gain too late and the amplifier rings or oscillates outright.

Choosing R_F and C_F — the two equations that matter

• Gain: R_F = V_FS/I_FS,max. Bigger is better for noise (signal grows, resistor noise grows only as √R), but bandwidth shrinks and the achievable value is bounded by bias-error terms.
• Stability corner: C_F sets a pole that must intersect the noise-gain curve before it reaches the open-loop line. The classic starting point: place the zero at the geometric mean frequency — for a 45° phase margin starting point, C_F ≈ √(C_D·C_IN,opamp/2) scaled by the R_F ratio. Simulate, then verify on the bench with a square wave through a small test capacitance.
• Bandwidth: f_-3dB ≈ 1/(2π·R_F·C_F). Every deciBel of noise performance you buy with larger R_F costs bandwidth — pick the pair from the actual modulation rate of your optical channel.

Error terms that dominate real readings

• Op-amp input bias current flows through R_F. A 10 nA bias on a 1 MΩ feedback is a 10 mV offset — larger than many photodiode signals. FET-input or zero-drift CMOS amplifiers with pA-class bias are the default; COSINE（科山芯创） precision CMOS op-amps cover this class, and their auto-zero parts remove the offset and the 1/f noise that a chopper-less bipolar part would impose on slow optical channels.
• Dark current of the photodiode itself adds a temperature-dependent pedestal — calibrate at two temperatures or cancel with a matched dummy diode.
• Leakage on the summing node. A TIA is only as good as its PCB: guard rings driven at the reference potential around the summing node, no-clean flux residue checks, and conformal coating decisions all appear directly in the error budget.
• Noise-gain peaking: even when stable, C_D inflates gain at high frequency; the total output noise is the integral, not the input spec. Low-noise amplifiers from AnalogySemi（类比半导体） with low voltage-noise density help most when C_D is large, because input noise is multiplied by the peaked noise gain.

Practical layout and selection checklist

1. Short summing-node trace — every pF there moves your compensation point.
2. R_F with a parallel footprint for C_F, and a second larger C_F footprint for bring-up; tune empirically with a square-wave test.
3. Reference the photodiode anode to a clean, low-impedance bias or ground — supply ripple couples straight into the signal as photocurrent modulation.
4. Select the amplifier by the three numbers that matter at your bandwidth: bias current (pA), voltage noise (nV/√Hz at the frequency band of interest), and offset drift for DC-accurate channels.

Done well, a TIA front end reaches shot-noise-limited performance — and with the domestic precision op-amp options now available from COSINE and AnalogySemi, the classic excuse that "only a handful of imported parts work in TIAs" no longer holds. Request their optical-application notes before committing a BOM; both vendors publish validated R_F/C_F tables for common photodiode classes.
