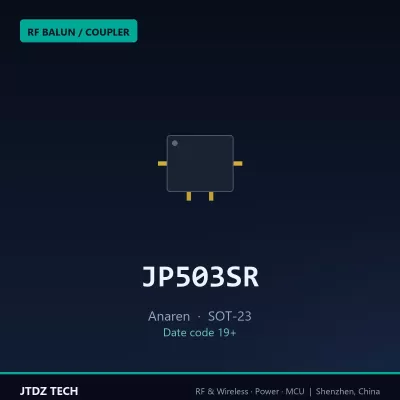

1P503SR — Overview
1P503SR by Anaren is a 90° Hybrid Coupler in a SMD (6.35 × 5.08 mm) package, supplied by Shenzhen Jingteng Electronics (JTDZ Tech). A low-profile, miniature 3 dB, 90° hybrid coupler (Pico Xinger®) from Anaren for DCS and PCS applications (1.7–2.0 GHz). It is designed for balanced amplifiers, phase shifters, attenuators and LNA signal distribution where small size and high performance are required.
Key Specifications
| Part Number | 1P503SR |
|---|---|
| Manufacturer | Anaren (Anaren Microwave) |
| Device Type | 3 dB, 90° Hybrid Coupler (Pico Xinger®) |
| Frequency Range | 1.7 – 2.0 GHz |
| Insertion Loss | 0.25 dB max |
| Isolation | 18 dB min |
| Amplitude Balance | ±0.45 dB max |
| Phase Balance | ±3° max |
| VSWR | 1.28 max |
| Power (CW) | 30 W average |
| Package | SMD, 6.35 × 5.08 mm (Pico Xinger) |
Datasheet Parameters
| Topology | 3 dB quadrature hybrid (90°) |
|---|---|
| Insertion Loss | 0.25 dB max |
| Isolation | 18 dB min (1.7–2.0 GHz) |
| Amplitude Balance | ±0.45 dB max |
| Phase Balance | ±3° max |
| Power Handling | 30 W avg CW (θJC 27.5 °C/W) |
| Operating Temperature | −55 to +85 °C |
Applications
- balanced amplifiers
- phase shifters and attenuators
- LNA signal distribution
- DCS / PCS wireless infrastructure
Stock & Packaging
Active product, in stock at JTDZ Tech. Original, genuine and unused parts with traceable date code; Certificate of Conformity available on request. Ships within 24 hours from JTDZ Tech stock.
FAQ
- Is the 1P503SR genuine and traceable?
Yes. JTDZ Tech (Shenzhen Jinteng Electronics) supplies the Anaren 1P503SR as original, genuine parts with traceable date codes and a Certificate of Conformity available on request. - What package does the 1P503SR use?
It is housed in a SMD (6.35 × 5.08 mm) package, suitable for automated assembly and high-density RF / microwave designs. - What are the typical applications of the 1P503SR?
It is used in balanced amplifier, phase-shifter and attenuator circuits, LNA signal distribution and DCS/PCS wireless front-ends where small size and high performance are required. - Is the 1P503SR still in production?
Active product, in stock at JTDZ Tech. - What is the lead time and shipping?
In stock at JTDZ Tech — ships within 24 hours. Each lot carries a traceable date code; small-batch, prototype and repair quantities are supported. - Can I get the full datasheet?
Yes. The complete Anaren 1P503SR datasheet (electrical characteristics, S-parameters, footprint and reel specs) is available on request — contact JTDZ Tech sales for the PDF and reference designs.
Related Anaren Products
Browse our full Anaren inventory at JTDZ Tech for more RF / microwave components, or contact us for cross-reference and volume pricing.
Specifications are based on the Anaren 1P503SR datasheet. JTDZ Tech is an independent distributor of original Anaren components; this page is for technical reference and procurement only.
