RF1602TR7
-
When You'll Get It:Aug 25 - Aug 29
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract. Free shipping on orders over $10,000. For bulk buys, get a personal support rep and quick reimbursement if anything's defective.
**Description**
- Broadband single-pole dual-throw (SPDT) RF switch
- Designed for switching applications requiring very low insertion loss and high power handling capability with minimal DC power consumption

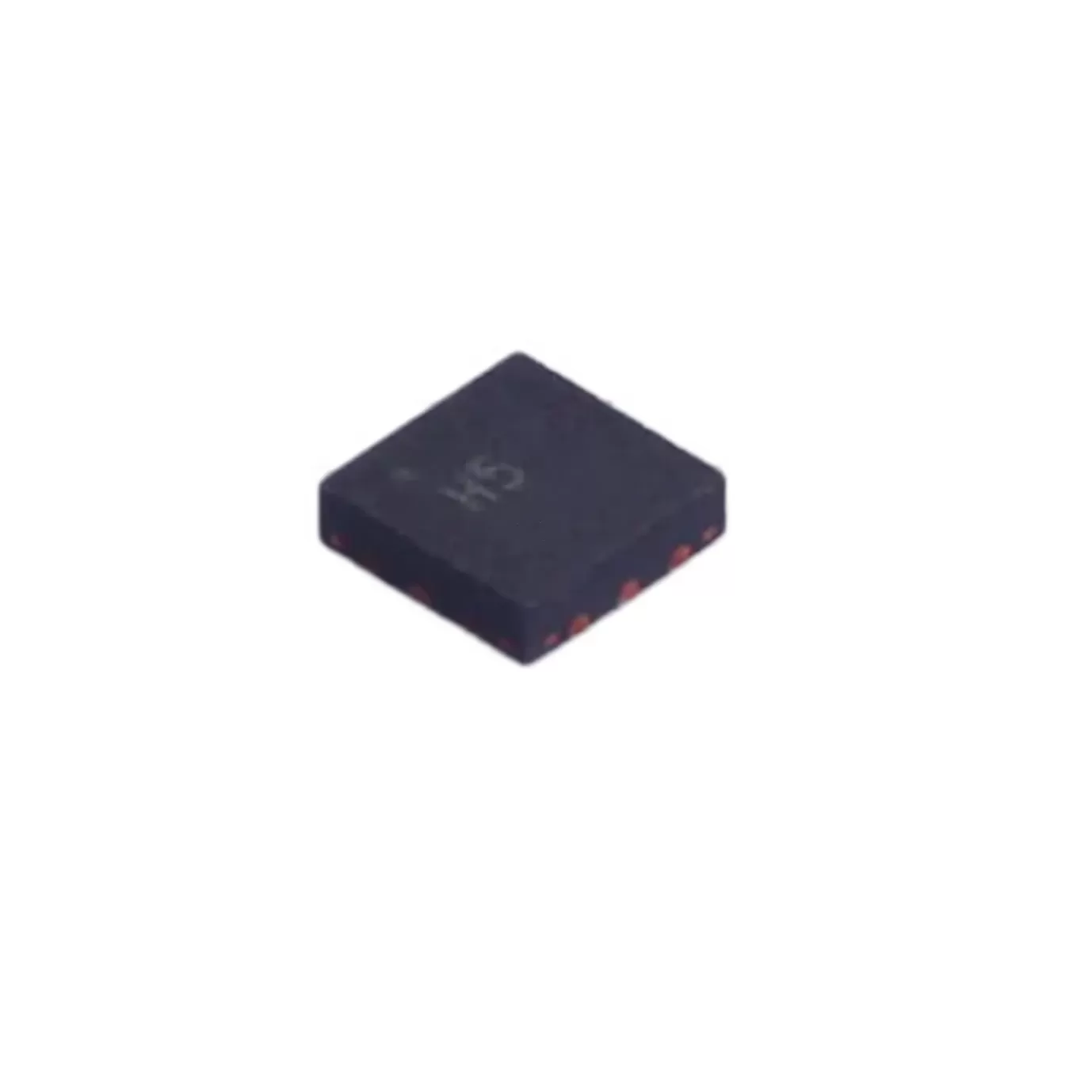

- Housed in a very compact 2mm x 2mm x 0.55mm 12-pin QFN package
- Package: QFN-12-EP(2x2)
- **Product Status:** Obsolete / End of Life (EOL)
**Features**
- Low frequency to 3.8 GHz operation
- Low insertion loss: 0.3 dB typ. at 1 GHz
- Very high isolation: 42 dB typ. at 1 GHz
- High linearity: IIP2 typ. 129 dBm
- Direct connection to VBATT
- Compatible with low voltage logic (VHIGH minimum = 1.3 V)
- No external DC blocking capacitors required on RF paths (unless DC is applied externally)
- Integrated control logic
- 2 kV HBM ESD rating on all ports
- 50 Ω characteristic impedance
- RoHS compliant
**Key Specifications** (Typical @ 25°C)
- Frequency Range: 400 MHz to 3800 MHz
- Insertion Loss: 0.6 dB max
- Isolation: 24 dB min
- Input Power (CW): 36 dBm max
- Supply Voltage: 2.6V to 4.6V
- Supply Current (Typ): 3.5V
- Switching Time: 2 µs typ.
- VSWR: 6 max
- Operating Temperature: –40°C to +85°C
- Package / Case: QFN-12-EP(2x2)
**Applications**
- SV-LTE, WCDMA, GSM
- Post PA switching
- General purpose switching applications
---
> **Note:** All parameters are subject to the official Qorvo RF1602 datasheet. Specifications are typical values and may vary with operating conditions. This product is obsolete and not recommended for new designs.
