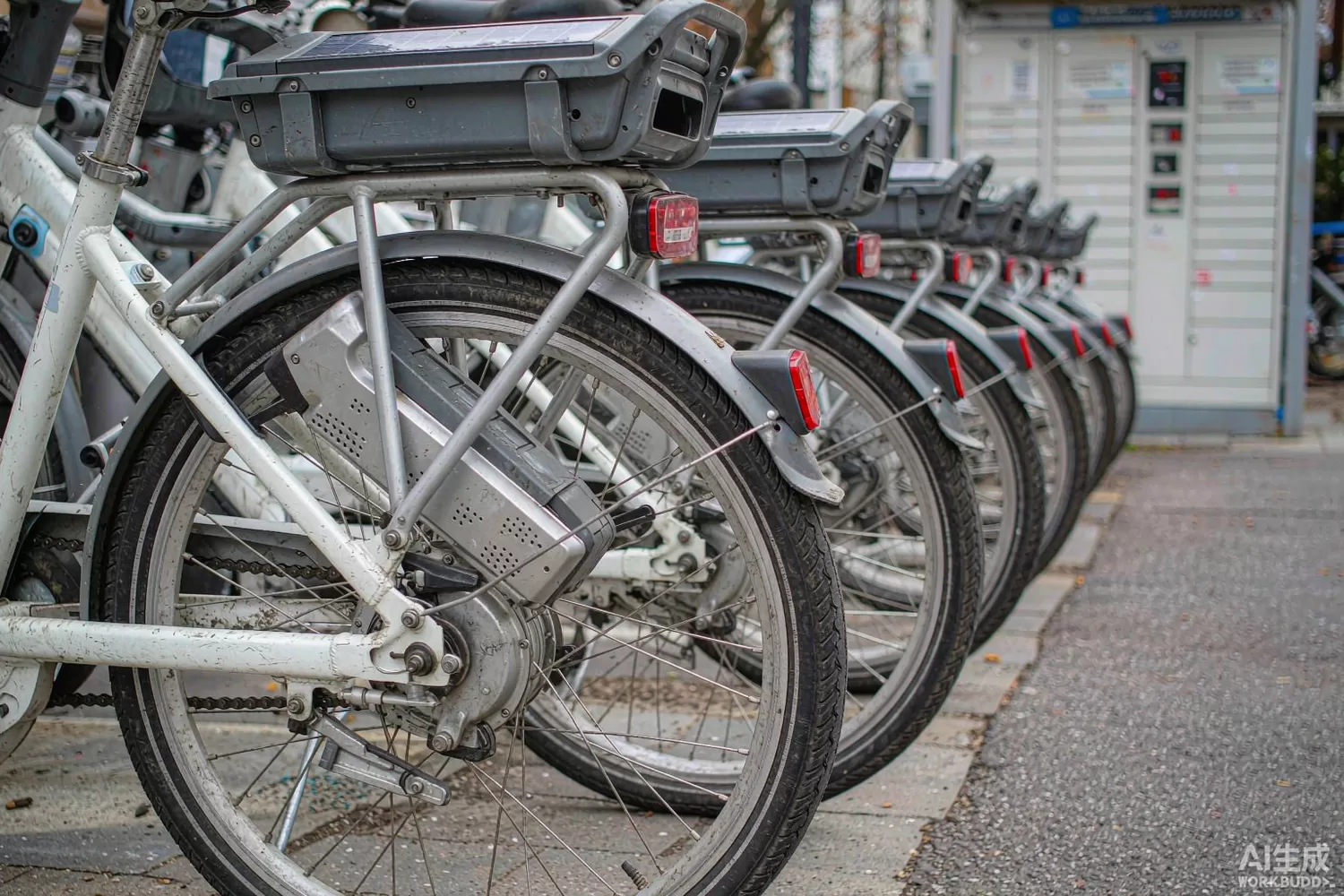

A shared bicycle is a battery, a lock and a radio that has to survive being left in the rain for two years. The engineering problem is not connectivity — cellular modules solved that — it is the power budget of a device whose panel area is smaller than a postcard and whose owner measures success in cost per ride. Every chip choice in the terminal is a negotiation between how often the bike reports its position and how often somebody has to walk down the street with a fresh battery. This article covers the connectivity, positioning and power chain of shared-mobility terminals and battery-swap cabinets, the parameters that decide whether a fleet stays online, and the domestic silicon worth comparing with imported cellular and GNSS parts. The underlying modem trade-offs are covered in our cellular IoT modem article.
Application logic: report position, accept commands, sleep deeply
- Wake schedule — the terminal sleeps in a power-saving mode and wakes for a scheduled report, a motion event or an unlock request; the interval is the single biggest lever on fleet battery life and is usually adaptive, tightening when the bike moves and relaxing when it sits.
- Unlock path — the rider's phone talks to the lock over BLE, the lock validates the credential offline or asks the cloud over cellular, then drives the motor; the round trip must feel instant, which means the cellular link cannot be the only path.
- Positioning — a multi-constellation receiver with an active antenna, assisted by network data for a fast first fix; accuracy matters less than reliability under urban canyon conditions, and the report usually includes a cell-based fallback.
- Motion and tamper sensing — an accelerometer distinguishes riding, parking, being knocked over and being carried into a van; this is both a service feature and the anti-theft mechanism.
- Power harvesting — a small panel on the basket or frame tops up a pack that must also survive winter; charging has to work at low irradiance and must not brown out the modem.
- Fleet operations — firmware updates, geofence enforcement, battery-health reporting and, on swap cabinets, per-slot state over an internal bus.
Parameters that decide fleet economics
- Sleep current of the whole terminal — the modem's power-saving-mode current plus the GNSS backup domain plus the lock's standby; a few microamps of leakage across ten thousand units is a maintenance crew.
- Energy per position fix — cold start versus assisted start is the difference between tens of seconds of receiver-on time and a couple of seconds; the receiver's tracking sensitivity and the assistance data path decide it.
- Uplink efficiency — Cat.1 bis at 10 Mbps downlink and 5 Mbps uplink is ample for telemetry, and the modem's transmit power and PA efficiency govern the energy per report more than the data rate.
- Antenna integration — a metal frame and a rider's body detune everything; the cellular and GNSS antennas need isolation and a matching network that survives the enclosure, which is the same discipline as our antenna module article.
- Temperature and ingress — −20 °C to +60 °C with condensation; the cell chemistry and the charger's termination behaviour both change.
- Lock actuation energy — a motorised latch draws hundreds of milliamps for a fraction of a second; the boost stage and its inrush limit decide whether the modem resets when the lock fires.
- Update reliability — a fleet update that fails on 5 per cent of units creates a support queue; dual-bank images and resumable downloads are firmware features that depend on flash size.
What is changing: Cat.1 bis, multi-band positioning and swap networks
Three shifts. First, Cat.1 bis became the default for Chinese mobility terminals: single-antenna operation removed the duplexer and a receive chain, cutting module cost and power while keeping voice-capable latency and enough throughput for telemetry — NB-IoT remains better for meters that never move, and the comparison is in our modem article. Second, positioning moved to multi-band: dual-frequency receivers reject multipath better in dense cities, and the domestic constellation plus augmentation services give a fast fix without a network round trip in more places than before. Third, the terminal became part of an energy network: swap cabinets report per-slot charging state, batteries carry their own identity and state-of-health, and the whole system schedules charging around grid tariffs — which pulls isolated CAN or RS-485 links and accurate current sensing into the same enclosure as the cellular radio.
Domestic alternatives: suppliers and indicative cost
Domestic silicon covers this terminal almost end to end. ASR Microelectronics (listed) supplies Cat.1 bis baseband families used widely in Chinese mobility and payment terminals; Eigencomm covers Cat.1 bis and NB-IoT SoCs; UNISOC's 8910DM family is a common Cat.1 reference. For positioning, Zhongke Microelectronics' AT6558R and AT6668 families are the volume domestic GNSS receivers, with Techtotop covering multi-system modules. Telink covers the BLE link, and Artery covers the application and motor-control core. Imported anchors are Qualcomm's MDM9207 class for Cat.4 designs, u-blox's MAX-M10S for positioning, and Nordic for the BLE side. Verify band support, operator certification and the module's power-saving behaviour before comparing prices; a modem that supports the right bands but ignores extended DRX will ruin the battery budget.
A terminal bench needs few exotic parts: an Artery AT32L021K8U7-4 as the low-power application core, a MP2359DJ-LF-Z buck for the modem's 3.8 V rail, a TPS61080DRCR boost for the lock actuator, an INA226AIDGSR to profile energy per fix and per report, a BME280 if the terminal also logs enclosure conditions, and a Titan Micro TS2502PN on the antenna feed.
Price figures below are indicative public-market reference ranges for moderate volumes, compiled from publicly observable listings. They fluctuate with the spot market, package option, grade (industrial, automotive, screened) and order quantity, and must not be read as a quotation. Ask us for a firm price on your exact part numbers and quantities.
| Function (imported anchor) | Example import part / class | Indicative import price (USD) | Domestic candidate | Indicative domestic price (USD) |
|---|---|---|---|---|
| Cat.1 bis baseband / module | Qualcomm MDM9207 class, imported module | 6.50 – 14.00 | ASR, Eigencomm, UNISOC 8910DM families | 2.80 – 6.50 |
| GNSS receiver | u-blox MAX-M10S class | 2.20 – 5.00 | Zhongke Micro AT6558R / AT6668 families | 0.60 – 1.60 |
| BLE SoC for local unlock | Nordic nRF52832 class | 1.80 – 4.20 | Telink BLE families (family level) | 0.60 – 1.50 |
| Application / motor-control MCU | STM32L4-class low power | 1.20 – 3.00 | AT32L021K8U7-4 (Artery) | 0.40 – 1.00 |
| Buck for modem rail | Imported 2 A synchronous buck | 0.45 – 1.20 | MP2359DJ-LF-Z and domestic equivalents | 0.15 – 0.45 |
| Boost for lock actuator | Imported low-power boost | 0.40 – 1.10 | TPS61080DRCR reference; domestic equivalents | 0.15 – 0.45 |
| Energy / current monitoring | Imported INA-class monitor | 0.70 – 2.20 | INA226AIDGSR and domestic monitors | 0.30 – 0.90 |
| Antenna ESD protection | Imported low-capacitance TVS | 0.12 – 0.40 | TS2502PN (Titan Micro) | 0.03 – 0.10 |
Use the table to locate the cost centre rather than to quote. The modem plus the positioning receiver is well over half of the electronics cost, so that is where domestic substitution pays; the rest of the bill is commodity. The real risk in this category is not price but certification and field behaviour: operators and regulators care about band support, power-saving compliance and, increasingly, whether the terminal reports its position honestly when the receiver is jammed or spoofed.
Validation flow before you commit
Measure energy per event, not average current. Instrument the board to log charge per position fix, per report and per unlock, then build a duty-cycle model and compare it with a two-week field trial on ten real bikes. Put the terminals in the situations that break them: underground car parks, dense shopping streets, a bike left on its side for a week, a panel shadowed by a building, a winter morning at −15 °C. Verify the fallback chain — if GNSS fails, does the report degrade gracefully to cell-based position, or does the terminal spend ten minutes hunting for satellites? Test the lock under low battery with the modem transmitting, because simultaneous transmit and actuation is the classic brown-out scenario. Finally, run an over-the-air update across the fleet sample and count how many units need a manual visit.
Frequently asked questions
Why Cat.1 bis instead of NB-IoT for a shared bike?
Latency and mobility. NB-IoT is excellent for stationary meters, while Cat.1 bis offers lower latency, better behaviour when the device moves between cells, and enough throughput for updates, at a single-antenna cost that closed most of the gap.
How accurate does the positioning need to be?
Accurate enough to find the bike at the kerb, which in practice means a few metres in open sky and a graceful degradation strategy in urban canyons. The receiver's multipath rejection matters more than its best-case accuracy figure.
Can a solar panel really keep a shared bike alive?
It reduces maintenance visits rather than eliminating them. Panel area on a bike is small and winter irradiance is poor, so the design must survive weeks without meaningful harvest.
What breaks first in the field?
Water ingress and cell aging, not the radio. Design the enclosure and the charging profile before optimising the modem.
