LFCG-1800+ — Overview

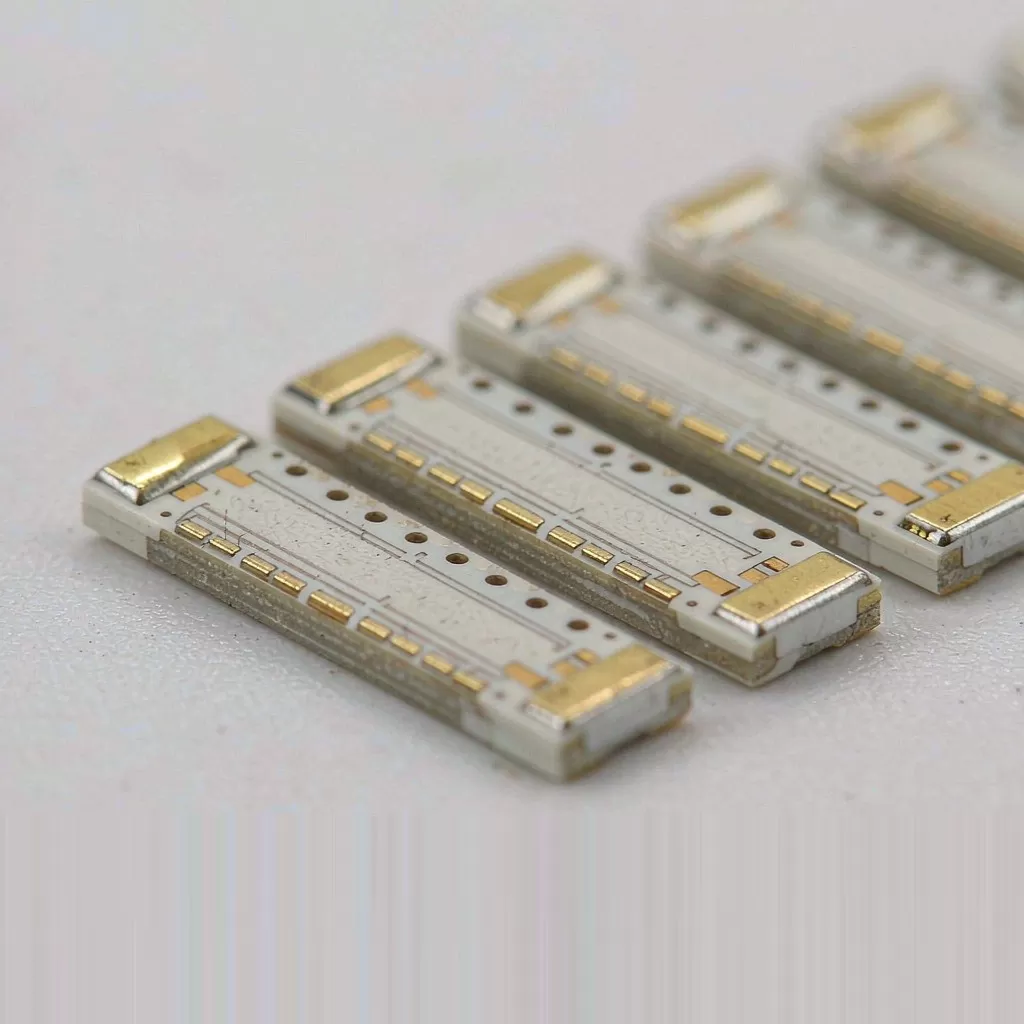

LFCG-1800+ by Mini-Circuits is a component in the LTCC Low Pass Filter (DC to 1800 MHz, 50 ohm, 0805) category, supplied by Shenzhen Jinteng Electronics Technology Co., Ltd. (JTDZ Tech) — an independent distributor serving OEMs, ODMs and EMS providers worldwide.
The LFCG-1800+ is an LTCC low pass filter covering DC to 1800 MHz in a 0805 ceramic package with wraparound terminations. It offers 1.1 dB typical passband insertion loss and a very wide stopband, with 35 dB minimum rejection from 2900 to 7000 MHz and suppression extending to 10 GHz. It is intended for harmonic rejection in VHF/UHF transmitters and receivers, military radar, test equipment and broadband wireless systems.
Key specifications
| Part number | LFCG-1800+ |
| Manufacturer | Mini-Circuits |
| Device type | LTCC Low Pass Filter |
| Package | 0805 |
| Package size | 2.00 x 1.25 x 0.95 mm |
| Stock | 5,000 pcs |
| Condition | Original, genuine & unused |
Datasheet parameters
| Filter type | Low pass, LTCC ceramic |
| Passband | DC to 1800 MHz |
| Insertion loss | 1.1 dB typ., 2.2 dB max. (DC-1800 MHz) |
| Cut-off frequency (3 dB) | 2030 MHz |
| Return loss in passband | 21 dB typ. (DC-1800 MHz) |
| Stopband rejection | 20 dB min. / 40 dB typ. at 2450-2900 MHz |
| Stopband rejection | 35 dB min. / 47 dB typ. at 2900-7000 MHz |
| Stopband rejection | 35 dB typ. at 7000-10000 MHz |
| Impedance | 50 ohm |
| RF power input | 5.5 W max. at +25 °C (derate to 1 W at +125 °C) |
| Operating temperature | -55 to +125 °C |
| Storage temperature | -55 to +125 °C |
| Package / case style | GE0805C-2, 2.00 x 1.25 x 0.95 mm |
Parameters above are transcribed from the manufacturer datasheet for reference only. Confirm the current datasheet revision and your application conditions before design-in.
Note: Specs taken from current datasheet rev. B (ECO-007606, 210426). Older revisions of this datasheet (rev. with M171900 marking) listed 6 W power and -40 to +85 °C; the current official revision states 5.5 W and -55 to +125 °C.
Stock, packaging and availability
| Item | Detail |
|---|---|
| Available quantity | 5,000 pcs |
| Condition | Original, genuine & unused |
| Packaging | Original factory packaging — tape & reel, tray, tube or bulk as supplied by the manufacturer |
| Warehouse | Shenzhen, China |
| Lead time | Confirmed per order — typically ships within 24–48 hours after payment |
Stock levels move quickly. Confirm current availability, quantity and lead time with our team before ordering.
Need a quote for LFCG-1800+? Send your target quantity, destination and required date code to our sales team — we reply with price, stock and lead time within 2 working hours.
Browse the full Filters / Crystal Oscillators collection for more LTCC Low Pass Filter devices, or request a quote for LFCG-1800+.
